AL1200P25K | Circuit breaker accessory, PowerPacT P, lug kit, mechanical, 800A to 1200A, 3/0 AWG to 500kcmil, aluminum, qty 3 | Square D by Schneider Electric

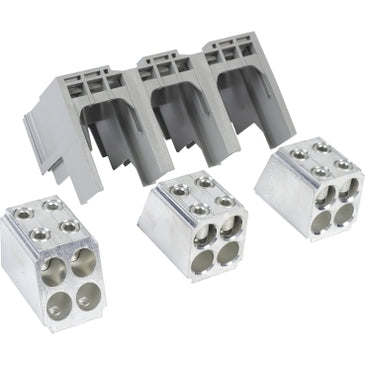

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AL1200P25K
Overview
Details for AL1200P25K
Circuit breaker accessory, PowerPacT P, lug kit, mechanical, 800A to 1200A, 3/0 AWG to 500kcmil, aluminum, qty 3
The M-frame, P-frame and NS630b–NS1250 circuit breakers have mechanical lugs standard on both ends of the unit-mounted circuit breakers. The M-frame and P-frame I-Line™ circuit breakers have mechanical lugs standard on the O/OFF end only. These lugs are suitable for use with copper or aluminum wire. Rear connectors, compression lugs and distribution lugs are available for special applications. These lugs are certified to UL, IEC & CSA Standards. The PowerPact Advantage. Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities. Flexible, Full range of thermal-magnetic and electronic trip molded case circuit breakers from 15 A to 3000 A, delivering the ratings, configurations, and operators for your unique applications. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories.Specifications
- Range of Product
- PowerPact
- Product or Component Type
- Mechanical lug
- accessory / separate part category
- Connection accessory
- Quantity per Set
- Set of 3
- circuit breaker type
- P-frame
- product compatibility
- PowerPact P PowerPact
- Line Rated Current
- 1200 A
- Material
- Aluminium
- Mounting Mode
- Unit mount
- Fixing Mode
- By screws
- location of connection
- Upstream;Downstream
- AWG gauge
- AWG 3/0...500 kcmil aluminium/copper
- kcmil size
- 500 kcmil
- Mounting Location
- Downstream;Upstream
- tightening torque
- 442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil)
- Product Certifications
- CSA;UL
- Category
- 01250-M;P;R FRAME ACCESSORIES ONLY
- Discount Schedule
- DE2
- GTIN
- 785901506195
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.70 in (14.478 cm)
- Package 1 Width
- 8.00 in (20.32 cm)
- Package 1 Length
- 11.80 in (29.972 cm)
- Package 1 Weight
- 4.17 lb(US) (1.891 kg)
- Warranty
- 18 months
