A9XPCM04 | Set of 4 connectors 100A monoconnect for 3P+N comb busbar | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A9XPCM04

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D A9XPCM04 Documents

Datasheet More Info

Overview

Details for A9XPCM04

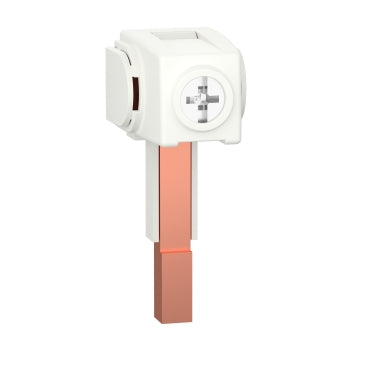

Set of 4 connectors 100A monoconnect for 3P+N comb busbar

This Acti9 Linergy FH monoconnect connector for Acti9 iC60 and Acti9 iK60 facilitates comb busbar power supply. It is a set of 4 devices. The Type of electric connection is PIN. The pin cross section is 16mm2. The cross section of the cable connector is 35mm2. The tightening torque is 4N.m. The color of the device is white RAL9003. The pollution degree is 3. It complies with IEC 60947-7-1 and IEC 61439-2 standards.

Specifications

range of product: Acti9
Product name: Linergy FH
Product or Component Type: Connector
Accessory / separate part category: Connection accessory
Poles description: 3P + N
Quantity per Set: Set of 4
Comb busbar and distribution block compatibility: Monoconnect
Line Rated Current: 100 A
color: White RAL 9003)
connections - terminals: Screw clamp terminals top connector 0.05 in² (35 mm²)
tightening torque: 35.40 lbf.in (4 N.m)
range compatibility: Acti 9 (Acti9 iC60) comb busbar, Acti 9 (Acti9 iK60) comb busbar, Acti 9 (Acti 9 iDPN) comb busbar, Acti 9 (Acti9 iDPN Vigi) comb busbar, Acti 9 (Acti9 iID) comb busbar, Acti 9 (Acti9 iID K) comb busbar, Acti 9 (Acti9 iSW) comb busbar, Acti 9 (Acti9 iSW-NA) comb busbar, Acti 9 (Acti9 STI) comb busbar
Category: 01078-DE2 MISC
Discount Schedule: DE2
GTIN: 3606480485275
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.14 in (2.9 cm)
Package 1 Width: 2.40 in (6.1 cm)
Package 1 Length: 3.11 in (7.9 cm)
Package 1 Weight: 2.26 oz (64 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 100
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 14.51 lb(US) (6.582 kg)
Warranty: 18 months
