9998SG480 | NEMA Contactor and NEMA Motor Starter, Type S, E coil modification kit, 440/480VAC 50/60Hz, NEMA size 5 | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9998SG480

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D 9998SG480 Documents

Datasheet More Info

Overview

Details for 9998SG480

NEMA Contactor and NEMA Motor Starter, Type S, E coil modification kit, 440/480VAC 50/60Hz, NEMA size 5

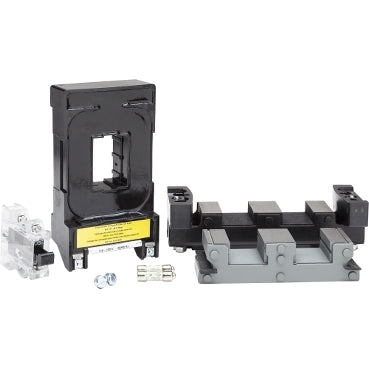

Type S magnetic contactors and starters are for motor control applications. This modification kit is for Type S NEMA size 5 devices. The kit includes an ecoil, an armature, a 15 A 600 V fuse and holder, a bottom magnet and an instruction sheet. This kit is for devices that have a 440/480 VAC 50/60 Hz coil. This E coil modification kit is for 440/480 VAC 50/60 Hz.

Specifications

Product or Component Type: Coil
accessory / separate part destination: Class 8536 type S starter
NEMA size: 5
[Ue] rated operational voltage: 480 V AC 60 Hz, 440 V AC 50 Hz
kit composition: armature, fuse 600 V, magnet, instruction sheet, holder, e-coil 480 V
Category: 18079-SPARE PARTS DISCOUNT CP10
Discount Schedule: CP10
GTIN: 785901376828
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 9.50 in (24.13 cm)
Package 1 Width: 4.50 in (11.43 cm)
Package 1 Length: 6.00 in (15.24 cm)
Package 1 Weight: 11.36 lb(US) (5.153 kg)
Warranty: 18 months
