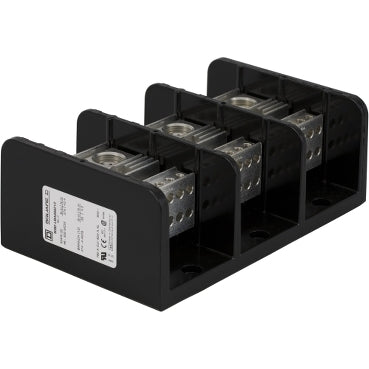

9080LBA365212 | Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A CU, 620A AL, 600 V | Square D by Schneider Electric

Brand: Square DSKU: 9080LBA365212

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9080LBA365212

Jump to: Overview & Specifications Reviews

Overview Details for 9080LBA365212

Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A CU, 620A AL, 600 V

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and twelve lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Range: 9080LB
Product: Power Distribution Block
Current Rating: 760 A copper;620 A aluminium
Voltage Rating: 600 V AC/DC
Mounting Type: Surface mount
number of poles: 3
Terminals per Pole: 2 line;12 load
Wire Size: Line 2;AWG 4...500 kcmil;copper or aluminium;Load 12;AWG 14...AWG 4;copper or aluminium
Electrical Connection: Tin plated aluminium lugs
SCCR: 100 kA UL 508 A
Ambient Air Temperature for Operation: -40…302 °F (-40…150 °C)
Block Material: Phenolic block
Terminal Tightening Torque: Load lug 35 lbf.in (3.95 N.m) AWG 14...AWG 4 copper or aluminium;Line lug 375 lbf.in (42.37 N.m) AWG 4...500 kcmil copper or aluminium
wire stripping length: Load 1 in (25.40 mm) bottom;Line 1.63 in (41.40 mm);Load 0.63 in (16.00 mm) top
Height: 5.5 in (139.70 mm)
Width: 8.54 in (216.92 mm)
Depth: 3.13 in (79.50 mm)
End Barrier: 9080LB53
Certifications: CE;UL recognized E60616 CCN XCFR2;CSA file 70361 class 6228 01
Category: 21711-9080 LB
Discount Schedule: CP1
GTIN: 785901097570
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.40 in (8.636 cm)
Package 1 Width: 5.90 in (14.986 cm)
Package 1 Length: 8.80 in (22.352 cm)
Package 1 Weight: 3.86 lb(US) (1.751 kg)
Warranty: 18 months
