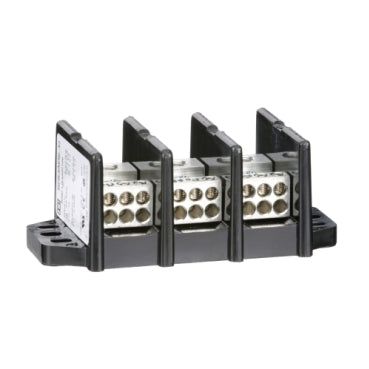

Power distribution block, Linergy, 3 pole, 1 line, 6 load, 175A CU, 135A AL, 600 V
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.Specifications
- Range
- 9080LB
- Product
- Power Distribution Block
- Current Rating
- 175 A copper;135 A aluminium
- Short Circuit Current Rating
- 65 kA
- Voltage Rating
- 600 V AC/DC
- Mounting Type
- Surface mount
- number of poles
- 3
- Terminals per Pole
- 1 line;6 load
- Wire Size
- Line 2;AWG 14...AWG 2/0;copper or aluminium;Load 6;AWG 14...AWG 4;copper or aluminium
- Electrical Connection
- Tin plated aluminium lugs
- SCCR
- 100 kA UL 508 A
- Ambient air temperature for operation
- -40…302 °F (-40…150 °C)
- Block Material
- Phenolic block
- Terminal Tightening Torque
- Line lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;Line lug 120 lbf.in (13.56 N.m) AWG 6...AWG 2/0 copper or aluminium;Line lug 35 lbf.in (3.95 N.m) AWG 14...AWG 10 copper or aluminium;Load lug 35 lbf.in (3.95 N.m) AWG 14...AWG 4 copper or aluminium
- wire stripping length
- Load 0.38 in (9.65 mm) top;Load 0.75 in (19.05 mm) bottom;Line 0.69 in (17.53 mm)
- Height
- 2.9 in (73.66 mm)
- Width
- 5.38 in (136.65 mm)
- Depth
- 2.06 in (52.32 mm)
- Net Weight
- 0.77 lb(US) (0.35 kg)
- Certifications
- UL recognized E60616 CCN XCFR2;CSA file 70361 class 6228 01;CE
- Category
- 21711-9080 LB
- Discount Schedule
- CP1
- GTIN
- 785901132615
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.80 in (7.112 cm)
- Package 1 Width
- 2.10 in (5.334 cm)
- Package 1 Length
- 5.40 in (13.716 cm)
- Package 1 Weight
- 12.32 oz (349.266 g)
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 24
- Package 2 Height
- 5.00 in (12.7 cm)
- Package 2 Width
- 11.50 in (29.21 cm)
- Package 2 Length
- 19.80 in (50.292 cm)
- Package 2 Weight
- 19.61 lb(US) (8.895 kg)
- Warranty
- 18 months
