9080LBA161101 | Power distribution block, Linergy, 1 pole, 1 line, 1 load, 115A CU, 90A AL, 600 V | Square D by Schneider Electric

Brand: Square DSKU: 9080LBA161101

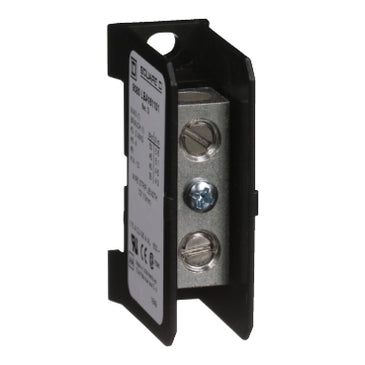

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9080LBA161101

Jump to: Overview & Specifications Reviews

Overview Details for 9080LBA161101

Power distribution block, Linergy, 1 pole, 1 line, 1 load, 115A CU, 90A AL, 600 V

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #14 to #2 copper or aluminum wire. The load side lug is rated to accept one #14 to #2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Range: 9080LB
Product: Miniature Power Distribution Block
Current Rating: 115 A copper;90 A aluminium
Short Circuit Current Rating: 65 kA
Voltage Rating: 600 V AC/DC
Mounting Type: Surface mount
number of poles: 1
Terminals per Pole: 1 line;1 load
Wire Size: Line 1;AWG 14...AWG 2;copper or aluminium;Load 1;AWG 14...AWG 2;copper or aluminium
Electrical Connection: Tin plated aluminium lugs
SCCR: 100 kA UL 508 A
Ambient air temperature for operation: -40…257 °F (-40…125 °C)
Block Material: Thermoplastic block
Terminal Tightening Torque: Line lug 50 lbf.in (5.65 N.m) AWG 3...AWG 2 copper or aluminium;Line lug 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper or aluminium;Line lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;Line lug 35 lbf.in (3.95 N.m) AWG 12...AWG 10 copper or aluminium;Line lug 35 lbf.in (3.95 N.m) AWG 14 copper;Load lug 50 lbf.in (5.65 N.m) AWG 3...AWG 2 copper or aluminium;Load lug 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper or aluminium;Load lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;Load lug 35 lbf.in (3.95 N.m) AWG 12...AWG 10 copper or aluminium;Load lug 35 lbf.in (3.95 N.m) AWG 14 copper
wire stripping length: Line 0.5 in (12.70 mm);Load 0.5 in (12.70 mm)
Height: 2.29 in (58.17 mm)
Width: 0.85 in (21.59 mm)
Depth: 1.62 in (41.15 mm)
End Barrier: 9080LB11
Certifications: UL recognized E60616 CCN XCFR2;CSA file 70361 class 6228 01;CE
Category: 21711-9080 LB
Discount Schedule: CP1
GTIN: 785901097273
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.50 in (3.81 cm)
Package 1 Width: 0.70 in (1.778 cm)
Package 1 Length: 2.30 in (5.842 cm)
Package 1 Weight: 1.28 oz (36.287 g)
Warranty: 18 months
