Documents: 9070T250D19

Datasheet More Info

9070T250D19 | Industrial control transformer, Type T, 1 phase, 250VA, 208/240/277/380/480V primary, 24V secondary, 50/60Hz | Square D by Schneider Electric

Brand: Square DSKU: 9070T250D19

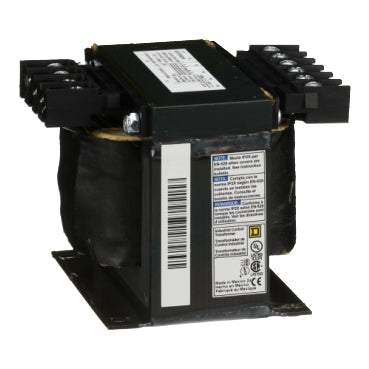

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9070T250D19

Jump to: Overview & Specifications Reviews

Overview Details for 9070T250D19

Industrial control transformer, Type T, 1 phase, 250VA, 208/240/277/380/480V primary, 24V secondary, 50/60Hz

Specifications

Product Type: Industrial Control Transformer
Power Rating: 350 VA
Type: T
Number of Phases: 1 phase
Power Rating: 350 VA UL;250 VA CSA;250 VA NOM;160 VA
Temperature Rise: 80 °C
Electrical Connection: Screw clamp terminals
Height: 3.84 in (97.54 mm)
Width: 4.5 in (114.30 mm)
Depth: 4.74 in (120.40 mm)
Material: Copper winding
Fingersafe Cover Compatibility: FSC23
Certifications: UL listed file E61239;CSA file LR37055 guide 184-N-90
Enclosure Type: Not rated (open device)
Insulation Temperature: 266 °F (130 °C)
Category: 16201-9070 T (NOT TF) 250-2000VA
Discount Schedule: CP8
GTIN: 785901905899
Number of Units in Package 1: 1
Package 1 Weight: 10.61 lb(US) (4.813 kg)
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Package 1 Height: 6.50 in (16.51 cm)
Package 1 Width: 6.80 in (17.272 cm)
Package 1 Length: 7.70 in (19.558 cm)
Warranty: 10 Years
