9070T100D2 | Industrial control transformer, Type T, 1 phase, 100VA, 240x480V primary, 24V secondary, 50/60Hz | Square D

Brand: Square DSKU: 9070T100D2

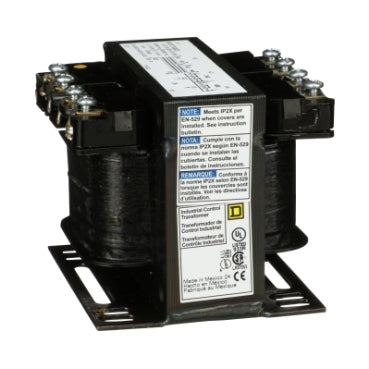

Square D | 9070T100D2
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T100D2

Overview Details for 9070T100D2

Industrial control transformer, Type T, 1 phase, 100VA, 240x480V primary, 24V secondary, 50/60Hz

Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 100VA and is 1 phase. This transformer has a 240 x 480V primary voltage and 24V secondary voltage. This transformer complies to UL, CE & CSA standards. D imensions for this product are 2.89 in (H), 3.38 in (W), 3.34 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1. This product comes with an 18 month warranty.

Specifications

Product Type
Industrial Control Transformer
Power Rating
100 VA
Type
T
Number of Phases
1 phase
Power Rating
100 VA
Temperature Rise
55 °C
Electrical Connection
Screw clamp terminals
Height
2.89 in (73.41 mm)
Width
3.38 in (85.85 mm)
Depth
3.34 in (84.84 mm)
Material
Copper winding
Fingersafe Cover Compatibility
FSC1
Certifications
UL listed file E61239;CSA file LR37055 guide 184-N-90
Enclosure Type
Not rated (open device)
Insulation Temperature
221 °F (105 °C)
Category
16200-9070 T (NOT TF) 50-200VA
Discount Schedule
CP8
GTIN
785901905011
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.95 in (7.493 cm)
Package 1 Width
3.35 in (8.509 cm)
Package 1 Length
3.38 in (8.585 cm)
Package 1 Weight
3.78 lb(US) (1.715 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
450
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
1706.00 lb(US) (773.828 kg)
Warranty
10 Years
