9070EO2D1 | Transformer, Type EO, industrial control, 100VA, 240/480VAC primary / 120VAC secondary, 1 phase, 50/60 Hz, 115°C | Square D by Schneider Electric

Brand: Square DSKU: 9070EO2D1

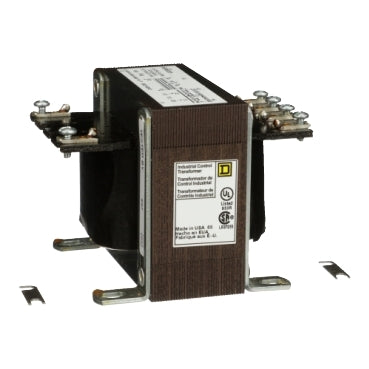

Square D | 9070EO2D1
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070EO2D1
Jump to: Overview & Specifications Reviews

Overview Details for 9070EO2D1

Transformer, Type EO, industrial control, 100VA, 240/480VAC primary / 120VAC secondary, 1 phase, 50/60 Hz, 115°C

The Square D™ by Schneider Electric Type EO Industrial Control Transformers are designed with exceptional voltage regulation and low temperature rise. This transformer is a single phase 100VA transformer designed for 240x480VAC primary with a 120VAC secondary. (The unit also supports 230x460VAC to 115VAC and 220x440VAC to 110VAC.) It is compliant with UL and CSA standards verified by third party UL carrying the cUL, UL labels, and self certified to the EN standards carrying a CE mark.

Specifications

Product or Component Type
Industrial Control Transformer
Range of Product
EO
Phase
1 phase
Rated power in VA
100 VA
Primary Voltage
240 x 480 V, 230 x 460 V, 220 x 440 V
Secondary Voltage
110 V
Temperature rise
80 °C
Electrical Connection
Screw clamp terminals
Height
3.78 in (96 mm)
Width
3.39 in (86 mm)
Depth
2.80 in (71 mm)
Net Weight
3.75 lb(US) (1.7 kg)
Product Certifications
UL Listed, CE, CSA
NEMA Degree of Protection
Not rated (open device)
Insulation temperature
266 °F (130 °C)
Category
16208-9070 9070 AP,E,G,H,SB, T, TF, (ALL)
Discount Schedule
CP8
GTIN
785901837138
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.80 in (9.652 cm)
Package 1 Width
4.20 in (10.668 cm)
Package 1 Length
4.00 in (10.16 cm)
Package 1 Weight
3.90 lb(US) (1.769 kg)
Warranty
18 months
