9001KT35R31 | Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, red, 30mm, 24...28V | Square D by Schneider Electric

Brand: Square DSKU: 9001KT35R31

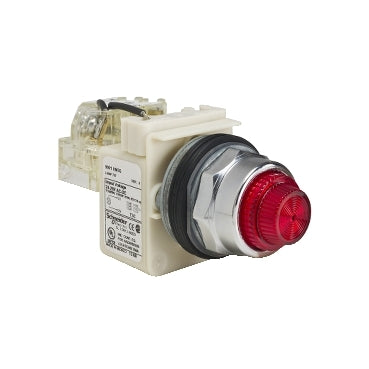

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9001KT35R31

Jump to: Overview & Specifications Reviews

Overview Details for 9001KT35R31

Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, red, 30mm, 24...28V

This illuminated red push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)

Specifications

Range of Product: Harmony 9001K
Product or Component Type: Push-to-test pilot light
Device short name: K
Bezel material: Metal
Mounting diameter: 1.18 in (30 mm)
lens type: Fresnel plastic
Cap/operator or lens colour: Red
Bulb base: BA 9s
light block supply: Full voltage 24 V, Full voltage 28 V
shape of screw head: Round
Light source: Incandescent bulb
Operating Mode: Push-to-test
Lens type: Fresnel
[Us] rated supply voltage: 24...28 V
Light block supply: Full voltage
Contacts type and composition: 1 C/O
Lens material: Polycarbonate
Size: 30 mm
Product Certifications: CSA LR25490 class 3211 03, CE, UL listed file E42259 CCN NKCR
NEMA degree of protection: NEMA 1/2/3/3R/4/6/12/13
Category: 21426-9001 K (NOT KA,KM,KX)
Discount Schedule: CS1
GTIN: 785901036128
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.08 in (12.903 cm)
Package 1 Width: 2.00 in (5.08 cm)
Package 1 Length: 12.90 in (32.774 cm)
Package 1 Weight: 6.40 oz (181.437 g)
Warranty: 18 months
