9001KS46BH2 | 30mm push button, Type K, 3 position selector switch, 6A inductive at 120VAC, 2NO/2NC contacts, black knob, NEMA 4, 13 | Square D by Schneider Electric

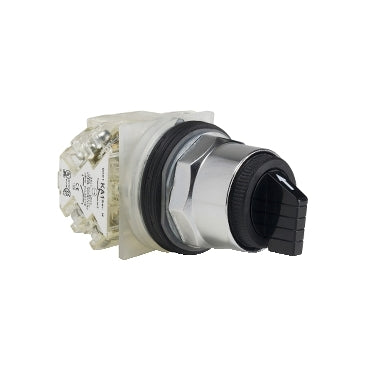

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9001KS46BH2
Overview
Details for 9001KS46BH2
30mm push button, Type K, 3 position selector switch, 6A inductive at 120VAC, 2NO/2NC contacts, black knob, NEMA 4, 13
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This non-illuminated 3 position selector switch has a die cast ring nut. The selector switch is maintained in all three positions. This operator has two 9001KA1 contact blocks mounted side by side on the back. Each contact block has one normally open and one normally closed contact. Contact blocks have a UL Type A600, UL Type Q600 and a 10A resistive VAC rating. The contacts in these contact blocks are double break direct acting. Contact blocks will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block terminals are protected to meeting VDE 0106 Part 100. This selector switch has a standard black knob. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."Specifications
- Range of Product
- Harmony 9001K
- Product or Component Type
- Selector switch
- Device short name
- K
- type of operator
- maintained
- operator profile
- Black standard knob
- Bezel material
- Metal
- Mounting diameter
- 1.18 in (30 mm)
- Operator position information
- 3 positions
- Contacts type and composition
- 2 C/O
- connections - terminals
- Screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Device presentation
- Complete product
- Cap/operator or lens colour
- Black
- Operator profile
- Standard handle
- Type of operator
- Stay put
- Size
- 30 mm
- Cam profile
- 6
- NEMA degree of protection
- NEMA 1/2/3/3R/4/6/12/13
- Product Certifications
- CE, CSA LR24590 class 3211 03, UL listed file E42259 CCN NKCR
- Category
- 21426-9001 K (NOT KA,KM,KX)
- Discount Schedule
- CS1
- GTIN
- 785901035121
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.81 in (4.6 cm)
- Package 1 Width
- 2.28 in (5.8 cm)
- Package 1 Length
- 3.70 in (9.4 cm)
- Package 1 Weight
- 6.24 oz (176.9 g)
- Warranty
- 18 months
