9001KS43FBH13 | Selector switch, Harmony 9001K, metal, long handle, black, 30mm, 3 positions, stay put, 1 C/O | Square D by Schneider Electric

Square D | 9001KS43FBH13

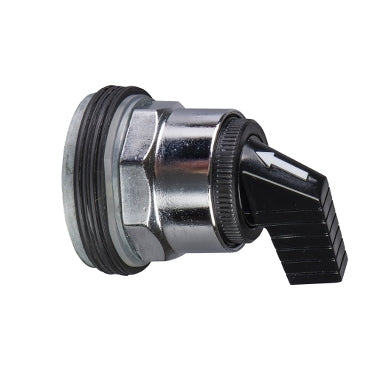

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9001KS43FBH13

Documents and manuals

Square D 9001KS43FBH13 Documents

Overview

Details for 9001KS43FBH13

Selector switch, Harmony 9001K, metal, long handle, black, 30mm, 3 positions, stay put, 1 C/O

This Harmony 9001K, black selector switch with long handle and C cam has 3 positions, operates with a stay-put mechanism. It has a chromium-plated metal bezel, it uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Specifications

Range of Product
Harmony 9001K
Product or Component Type
Selector switch
Device short name
K
type of operator
stay put
operator profile
Black long handle
Bezel material
Metal
Mounting diameter
1.18 in (30 mm)
Operator position information
3 positions
Contacts type and composition
1 C/O
connections - terminals
Screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
product compatibility
9001KA1 side 2
Device presentation
Complete product
Cap/operator or lens colour
Black
Operator profile
Long handle
Type of operator
Stay put
Size
30 mm
Cam profile
3
NEMA degree of protection
NEMA 1/2/3/3R/4/6/12/13
Product Certifications
UL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
Category
21426-9001 K (NOT KA,KM,KX)
Discount Schedule
CS1
GTIN
3389110912197
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.13 in (5.4 cm)
Package 1 Width
1.85 in (4.7 cm)
Package 1 Length
3.66 in (9.3 cm)
Package 1 Weight
5.36 oz (152.0 g)
Unit Type of Package 2
S01
Number of Units in Package 2
16
Package 2 Height
5.91 in (15.0 cm)
Package 2 Width
5.91 in (15.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
5.78 lb(US) (2.62 kg)
Warranty
18 months
