9001KS43FB | Selector switch head, Harmony 9001K, metal, long handle, black, 30mm, 3 positions, stay put | Square D by Schneider Electric

Brand: Square DSKU: 9001KS43FB

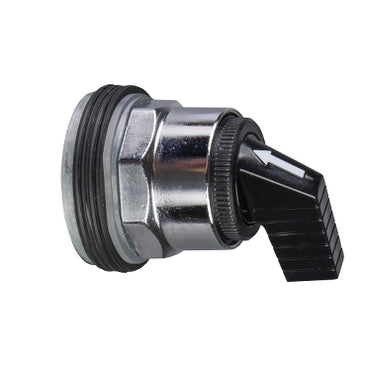

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9001KS43FB

Jump to: Overview & Specifications Reviews

Overview Details for 9001KS43FB

Selector switch head, Harmony 9001K, metal, long handle, black, 30mm, 3 positions, stay put

This Harmony 9001K, black selector switch with long handle and C cam has 3 positions, operates with a stay-put mechanism. It has a chromium-plated metal bezel. This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Specifications

Range of Product: Harmony 9001K
Product or Component Type: Head for selector switch
Device short name: 9001K
type of operator: stay put
operator profile: Black long handle
Bezel material: Metal
Mounting diameter: 1.18 in (30 mm)
Net Weight: 0.38 lb(US) (0.172 kg)
Shape of signaling unit head: Octagonal
Operator position information: 3 positions
Contacts type and composition: Without contact block
Mechanical durability: 500000 cycles
product compatibility: 9001KA1 side 1
Device presentation: Basic element
Cap/operator or lens colour: Black
Operator profile: Long handle
Type of operator: Stay put
Size: 30 mm
Cam profile: 3
Protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
overvoltage category: Class II IEC 61140
IP degree of protection: IP66 IEC 60529
NEMA degree of protection: NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
standards: CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C 4520, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C 852
Product Certifications: UL 508, NEMA
vibration resistance: 7 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 50 gn IEC 60068-2-27
Category: 21426-9001 K (NOT KA,KM,KX)
Discount Schedule: CS1
GTIN: 3389118039698
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.74 in (9.5 cm)
Package 1 Width: 2.01 in (5.1 cm)
Package 1 Length: 2.28 in (5.8 cm)
Package 1 Weight: 4.27 oz (121 g)
Unit Type of Package 2: S01
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 5.91 in (15 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 6.81 lb(US) (3.088 kg)
Warranty: 18 months
