9001KS11BH5 | Selector switch, Harmony 9001K, metal, standard handle, black, 30mm, 2 positions, stay put, 1NO | Square D by Schneider Electric

Square D | 9001KS11BH5

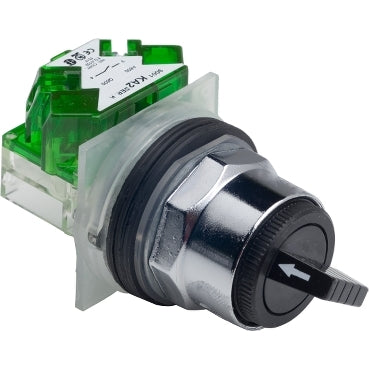

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9001KS11BH5

Documents and manuals

Square D 9001KS11BH5 Documents

Overview

Details for 9001KS11BH5

Selector switch, Harmony 9001K, metal, standard handle, black, 30mm, 2 positions, stay put, 1NO

This selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with a black standard knob. It is easily installed into a standard 30mm diameter panel cut-out. It features 2 positions maintained operator and uses screw clamp terminals. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Specifications

Range of Product
Harmony 9001K
Product or Component Type
Selector switch
Device short name
K
type of operator
maintained
operator profile
Black standard knob
Bezel material
Metal
Mounting diameter
1.18 in (30 mm)
Operator position information
2 positions
Contacts type and composition
1 NO
connections - terminals
Screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Device presentation
Complete product
Cap/operator or lens colour
Black
Operator profile
Standard handle
Type of operator
Stay put
Size
30 mm
Cam profile
5
NEMA degree of protection
NEMA 1/2/3/3R/4/6/12/13
Product Certifications
UL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
Category
21426-9001 K (NOT KA,KM,KX)
Discount Schedule
CS1
GTIN
3389118039919
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.90 in (4.826 cm)
Package 1 Width
2.20 in (5.588 cm)
Package 1 Length
3.70 in (9.398 cm)
Package 1 Weight
4.96 oz (140.614 g)
Warranty
18 months
