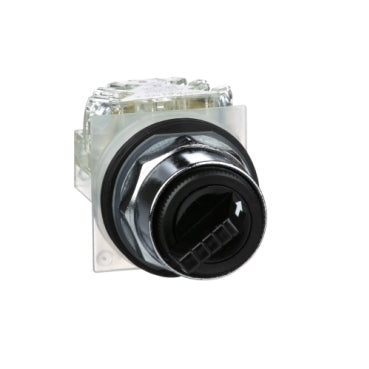

9001KS11BH13 | 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9001KS11BH13
Overview
Details for 9001KS11BH13
30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features 2 positions operator and is supplied with 1 x C/O contact and screw clamp terminals. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.Specifications
- Range of Product
- Harmony 9001K
- Product or Component Type
- Selector switch
- Device short name
- K
- type of operator
- stay put
- operator profile
- Black standard knob
- Bezel material
- Metal
- Mounting diameter
- 1.18 in (30 mm)
- Operator position information
- 2 positions
- Contacts type and composition
- 1 C/O
- connections - terminals
- Screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- product compatibility
- 9001KA1 side 2
- Device presentation
- Complete product
- Cap/operator or lens colour
- Black
- Operator profile
- Standard handle
- Type of operator
- Stay put
- Size
- 30 mm
- Cam profile
- 5
- NEMA degree of protection
- NEMA 1/2/3/3R/4/6/12/13
- Product Certifications
- CE, CSA LR24590 class 3211 03, UL listed file E42259 CCN NKCR
- Category
- 21426-9001 K (NOT KA,KM,KX)
- Discount Schedule
- CS1
- GTIN
- 3389118039933
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.80 in (4.572 cm)
- Package 1 Width
- 2.20 in (5.588 cm)
- Package 1 Length
- 3.70 in (9.398 cm)
- Package 1 Weight
- 5.28 oz (149.686 g)
- Unit Type of Package 2
- S01
- Number of Units in Package 2
- 24
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 5.91 in (15.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 8.54 lb(US) (3.873 kg)
- Warranty
- 18 months
