9001KR8RH25 | Push-button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 3 positions, return to center, 1 NC late + 1 NC | Square D by Schneider Electric

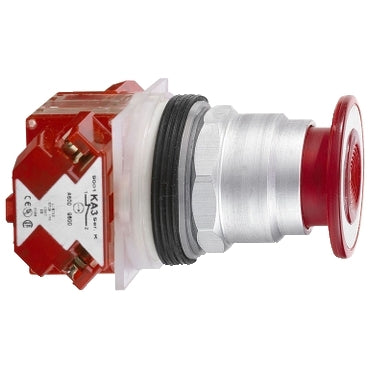

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9001KR8RH25
Overview
Details for 9001KR8RH25
Push-button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 3 positions, return to center, 1 NC late + 1 NC
This Harmony 9001K, modular red push button has 3-postions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and is supplied with contact block, 40mm mushroom head. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.Specifications
- Range of Product
- Harmony 9001K
- Product or Component Type
- Push-button
- Device short name
- 9001K
- type of operator
- pull : spring return, center : stay put, push : spring return
- operator profile
- Red mushroom Ø 41 mm, unmarked
- Bezel material
- Metal
- Mounting diameter
- 1.18 in (30 mm)
- Net Weight
- 0.43 lb(US) (0.195 kg)
- Operating position
- Any position
- Shape of signaling unit head
- Round
- Head material
- Plastic
- Operator additional information
- Screw-on plastic
- Operator position information
- 3 positions
- Contacts type and composition
- 1 NC late break + 1 NC
- Contact operation
- Late-break
- positive opening
- With IEC 60947-5-2
- Mechanical durability
- 5000000 cycles
- connections - terminals
- Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- tightening torque
- 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
- shape of screw head
- Cross slotted
- Contacts material
- Silver alloy contacts
- short-circuit protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- [Ith] conventional free air thermal current
- 10 A
- [Ui] rated insulation voltage
- 250 V 3)EN/IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 2.5 kV EN/IEC 60947-1
- [Ie] rated operational current
- 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
- [Icm] rated short-circuit making capacity
- 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
- rated breaking capacity
- 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
- Device presentation
- Complete product
- Cap/operator or lens colour
- Red
- Operator profile
- Mushroom Ø 41 mm
- Type of operator
- Pull : spring return, center : stay put, push : spring return
- Size
- 30 mm
- Protective treatment
- TC
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation
- -13…158 °F (-25…70 °C)
- overvoltage category
- Class II IEC 61140
- IP degree of protection
- IP66 IEC 60529
- NEMA degree of protection
- NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
- standards
- EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508, CSA C22.2 No 14
- Product Certifications
- UL 508, NEMA
- vibration resistance
- 7 gn 2…500 Hz)IEC 60068-2-6
- shock resistance
- 50 gn IEC 60068-2-27
- Category
- 21426-9001 K (NOT KA,KM,KX)
- Discount Schedule
- CS1
- GTIN
- 3389118040182
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.80 in (4.572 cm)
- Package 1 Width
- 2.10 in (5.334 cm)
- Package 1 Length
- 3.60 in (9.144 cm)
- Package 1 Weight
- 4.48 oz (127.006 g)
- Warranty
- 18 months
