9001KR1YH13 | Push-button, Harmony 9001K, metal, flush, yellow, 30mm, spring return, 1 C/O | Square D by Schneider Electric

Brand: Square DSKU: 9001KR1YH13

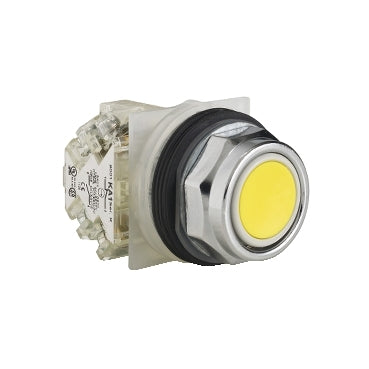

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9001KR1YH13

Jump to: Overview & Specifications Reviews

Overview Details for 9001KR1YH13

Push-button, Harmony 9001K, metal, flush, yellow, 30mm, spring return, 1 C/O

This Harmony 9001KR1YH13 is a yellow push button 600VAC, 10A. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.

Specifications

Range of Product: Harmony 9001K
Product or Component Type: Push-button
device short name: K
operator additional information: Metal guard
bezel material: Metal
mounting diameter: 1.18 in (30 mm)
light source: Without
light block supply: Without supply
contacts type and composition: 1 C/O
[Ie] rated operational current: 10 A;AC-15;10 A;DC-13
contact operation: Standard
device presentation: Complete product
Product Certifications: NEMA;CE;UL listed file E42259 CCN NKCR;CSA LR 25490 class 3211 03
NEMA degree of protection: NEMA 1/2/3/3R/4/6/12/13
Category: 21426-9001 K (NOT KA;KM;KX)
Discount Schedule: CS1
GTIN: 785901033431
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.90 in (4.826 cm)
Package 1 Width: 2.20 in (5.588 cm)
Package 1 Length: 3.60 in (9.144 cm)
Package 1 Weight: 4.64 oz (131.542 g)
Warranty: 18 months
