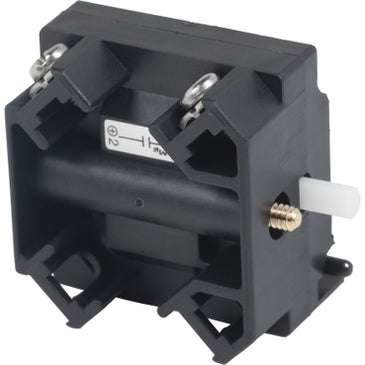

9001KA53 | Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1NC | Square D by Schneider Electric

Brand: Square DSKU: 9001KA53

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9001KA53

Jump to: Overview & Specifications Reviews

Overview Details for 9001KA53

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1NC

This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x C/O contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features power reed contact operation. It weighs 45g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Specifications

Range of Product: Harmony 9001K, Harmony 9001SK
Product or Component Type: Contact block
Device short name: 9001K
Net Weight: 0.10 lb(US) (0.045 kg)
Contacts type and composition: 1 NC
Contact operation: Power reed, Hermetically sealed
Contacts usage: Hermetically sealed contacts
positive opening: Without
connections - terminals: Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
tightening torque: 7.08 lbf.in (0.8 N.m) IEC 60947-1
shape of screw head: Cross slotted
short-circuit protection: 10 A cartridge fuse IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A
[Ui] rated insulation voltage: 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV IEC 60947-1
[Ie] rated operational current: 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
[Icm] rated short-circuit making capacity: 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.55 kA 125 V DC-13, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13
rated breaking capacity: 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
[Us] rated supply voltage: 240 V
Connections - Terminals: Screw-clamp terminals
Protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
electrical shock protection class: Class II IEC 61140
standards: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C 4520, JIS C 852, EN/IEC 60947-5-4, UL 508
Product Certifications: NEMA, UL 508
vibration resistance: 7 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 50 gn IEC 60068-2-27
Category: 21434-9001 KA CONTACT BLOCKS
Discount Schedule: CS1
GTIN: 3389118042520
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.10 in (2.8 cm)
Package 1 Width: 1.69 in (4.3 cm)
Package 1 Length: 1.89 in (4.8 cm)
Package 1 Weight: 1.44 oz (40.8 g)
Unit Type of Package 2: S01
Number of Units in Package 2: 12
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 5.91 in (15.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 24.87 oz (705.0 g)
Warranty: 18 months
