9001KA3 | 30mm Push Button, Types K, SK or KX, contact block, 1 NC | Square D by Schneider Electric

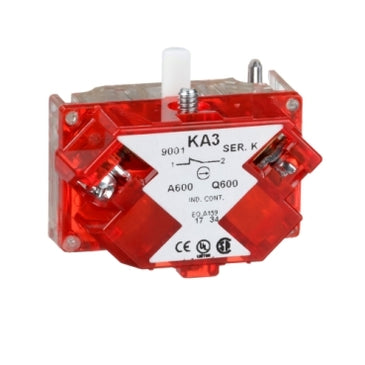

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9001KA3
Overview
Details for 9001KA3
30mm Push Button, Types K, SK or KX, contact block, 1 NC
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Its protection index is IP20, protecting operators from unexpected contact with live circuits. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.Specifications
- Range of Product
- Harmony 9001K, Harmony 9001SK
- Product or Component Type
- Contact block
- Device short name
- 9001K
- Terminals description ISO n°1
- (3-4)NO
- Net Weight
- 0.05 lb(US) (0.023 kg)
- Contacts type and composition
- 1 NC
- Contact operation
- Positive opening
- positive opening
- With IEC 60947-5-2
- connections - terminals
- Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
- tightening torque
- 7.08 lbf.in (0.8 N.m) IEC 60947-1
- shape of screw head
- Cross slotted
- Contacts material
- Silver alloy contacts
- short-circuit protection
- 10 A cartridge fuse IEC 60947-5-1
- [Ith] conventional free air thermal current
- 10 A
- [Ui] rated insulation voltage
- 250 V 3)IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 2.5 kV IEC 60947-1
- [Ie] rated operational current
- 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
- [Icm] rated short-circuit making capacity
- 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.55 kA 125 V DC-13, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13
- rated breaking capacity
- 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
- [Us] rated supply voltage
- 0...600 V
- Connections - Terminals
- Screw-clamp terminals
- Protective treatment
- TC
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation
- -13…158 °F (-25…70 °C)
- electrical shock protection class
- Class II IEC 61140
- IP degree of protection
- IP20 IEC 60529
- standards
- UL 508, JIS C 4520, JIS C 852, EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1
- Product Certifications
- NEMA, UL 508
- vibration resistance
- 7 gn 2…500 Hz)IEC 60068-2-6
- shock resistance
- 50 gn IEC 60068-2-27
- Category
- 21434-9001 KA CONTACT BLOCKS
- Discount Schedule
- CS1
- GTIN
- 3389110918151
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.38 in (3.5 cm)
- Package 1 Width
- 1.65 in (4.2 cm)
- Package 1 Length
- 2.01 in (5.1 cm)
- Package 1 Weight
- 0.81 oz (23.0 g)
- Unit Type of Package 2
- S01
- Number of Units in Package 2
- 100
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 5.91 in (15.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 5.20 lb(US) (2.357 kg)
- Warranty
- 18 months
