9001BG214 | Push button, Type B, standard duty control station, 5A, 600VAC, universal, without legend inserts, NEMA 1 | Square D by Schneider Electric

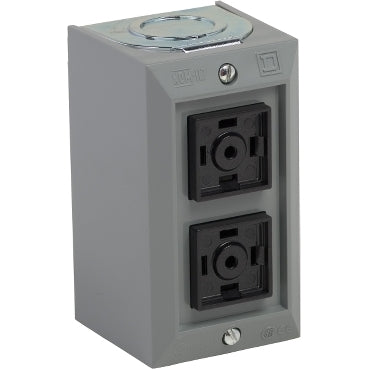

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9001BG214
Overview
Details for 9001BG214
Push button, Type B, standard duty control station, 5A, 600VAC, universal, without legend inserts, NEMA 1
These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. Each push button has a normally open and a normally closed contact. Each push button is supplied without a legend insert. The required legend insert must be purchased separately. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified. "It can be surface mounted, suitable for indoor installation." "The 9001BW control stations are fully assembled with two product specific operators with single speed or two speed options."Specifications
- Range of Product
- Harmony 9001B
- Product or Component Type
- Complete control station
- Device short name
- 9001BG
- control station composition
- 2 push-buttons
- Contacts type and composition
- 2 NO + 2 NC
- connections - terminals
- Screw clamp terminal
- [Ie] rated operational current
- 5 A 600 V
- device mounting
- Surface
- Type of Installation
- Indoor
- NEMA degree of protection
- NEMA 1
- Product Certifications
- CE, UL listed file E42259 CCN NKCR, CSA LR25490 class 3211 03
- Environmental characteristic
- Standard environment
- Category
- 21421-9001 B (NOT BW70 - BW80)
- Discount Schedule
- CS1
- GTIN
- 785901390251
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.16 in (25.806 cm)
- Package 1 Width
- 4.00 in (10.16 cm)
- Package 1 Length
- 25.81 in (65.548 cm)
- Package 1 Weight
- 10.08 oz (285.763 g)
- Warranty
- 18 months
