8539SDASP5 | NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 2, 45A, 3 phase, 120 VAC coil, NEMA 12 | Square D by Schneider Electric

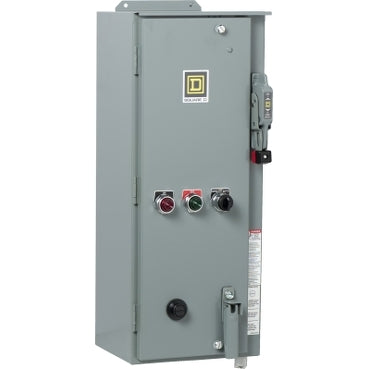

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8539SDASP5
Overview
Details for 8539SDASP5
NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 2, 45A, 3 phase, 120 VAC coil, NEMA 12
Specifications
- Product
- Combination Starter
- Type
- S
- Control Circuit Type
- Separate control circuit
- Control Circuit Voltage
- 110 V AC 50 Hz;120 V AC 60 Hz
- Starter Type
- Non reversing
- Number of Poles
- 3P
- Horsepower Rating
- 7.5…15 hp 480 V AC;3 phase;1.5…7.5 hp 240 V AC;3 phase
- Maximum Voltage Rating
- 240/480 V AC
- Control Units
- Selector switch HAND-OFF-AUTO)
- Pilot Light
- Red indicator on LED;Green indicator off LED
- Auxiliary Contacts
- 2 NO + 2 NC
- thermal overload type
- Solid state Motor Logic class 10/20 9…27 A
- Disconnect Type
- Circuit breaker;30 A;electrical SPDT
- circuit breaker type
- EMCP
- breaking capacity
- 100 kA 480 V AC;50 kA 600 V AC
- Height
- 27.75 in (704.85 mm)
- Depth
- 9.59 in (243.59 mm)
- Width
- 10.5 in (266.70 mm)
- Handle Swing
- 3.25 in (82.55 mm)
- Enclosure Type
- NEMA 12 painted sheet steel with external reset
- NEMA size
- 2
- Product Certifications
- UL listed file E152395 CCN NKJH;UL listed file E152395 CCN NKJH7;CSA file 584 class 3211 04
- Category
- 21213-8538;39 SC;SD(NOT S*R;T;W)
- Discount Schedule
- CP1
- GTIN
- 785901973775
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 12.00 in (30.48 cm)
- Package 1 Width
- 14.00 in (35.56 cm)
- Package 1 Length
- 32.50 in (82.55 cm)
- Package 1 Weight
- 53.00 lb(US) (24.04 kg)
- Warranty
- 18 months
