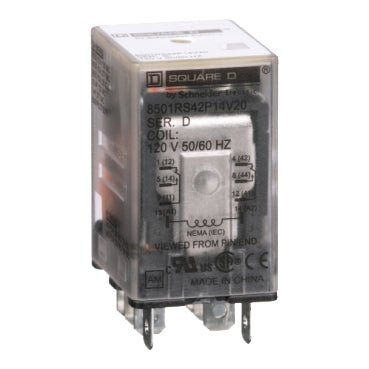

8501RS42P14V20 | Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil | Square D by Schneider Electric

Brand: Square DSKU: 8501RS42P14V20

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501RS42P14V20

Jump to: Overview & Specifications Reviews

Overview Details for 8501RS42P14V20

Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Specifications

product range: 8501R
product type: Miniature Relay
Relay Type: Standard
mounting type: Socket
contact composition: DPDT
[Uc] control circuit voltage: 120 V AC
pilot light: Green indicator relay energised LED
manual operator: Without test button
horsepower rating: 0.5 120 V AC;1 277 V AC
breaking capacity: 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;15 A 120 V AC resistive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;15 A 28 V DC resistive control circuit UL 508
maximum switching voltage: 300 V AC;30 V DC
contact material: Silver alloy;gold flashed
operating time: 20 ms - pick-up;20 ms - drop-out
shape of pins: Spade
for use with: 8501NR42
Height: 1.07 in (27.3 mm)
Width: 0.83 in (21 mm)
Depth: 1.65 in (41.8 mm)
ambient temperature range - operational: -40…131 °F (-40…55 °C)
product certifications: UL Listed;UL Recognized;CSA;CE
Category: 21143-8501 R
Discount Schedule: CP2
GTIN: 785901131342
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.30 in (3.302 cm)
Package 1 Width: 1.40 in (3.556 cm)
Package 1 Length: 2.00 in (5.08 cm)
Package 1 Weight: 1.44 oz (40.823 g)
Warranty: 18 months
