3S67F | Low voltage transformer, encapsulated dry type, 1 phase, 3kVA, multiple voltages, Type 3R | Square D by Schneider Electric

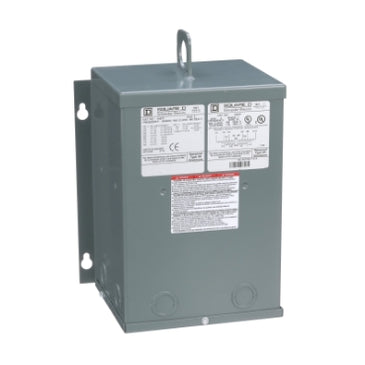

Square D | 3S67F
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3S67F

Documents and manuals

Square D 3S67F Documents

Overview

Details for 3S67F

Low voltage transformer, encapsulated dry type, 1 phase, 3kVA, multiple voltages, Type 3R

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 3 KVA. This transformer has a primary voltages of 190/200/208/220 x 380/400/416/440 V, and a secondary voltage of 110/220 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 10.5 in (H), 8.62 in (W), 6.5 in (D). This product complys to UL & CSA standards.

Specifications

Primary to Secondary Voltage
190/200/208/220 x 380/400/416/440 V 110/220 V
Full Capacity Taps
0
Enclosure Code
10A
Phase
1 phase
Power Rating
3 kVA
Temperature rise
115 °C
Height
10.5 in (266.70 mm)
Width
8.62 in (218.95 mm)
Depth
6.5 in (165.10 mm)
enclosure mounting
Wall mounted
Enclosure Material
Painted sheet steel
Enclosure Type
NEMA 3R
Insulation temperature
356 °F (180 °C)
Product Certifications
CSA, cULus, TÜV, UL Listed
Category
16277-RESIN LVGP XFMR
Discount Schedule
PE2
GTIN
785901069478
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
11.80 in (29.972 cm)
Package 1 Width
11.60 in (29.464 cm)
Package 1 Length
17.20 in (43.688 cm)
Package 1 Weight
55.20 lb(US) (25.038 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
18
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
1080.97 lb(US) (490.32 kg)
Warranty
18 months
