3104140020 | NEMA Motor Starter, Type S, replacement coil, 24VAC 60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting | Square D by Schneider Electric

Brand: Square DSKU: 3104140020
Square D | 3104140020

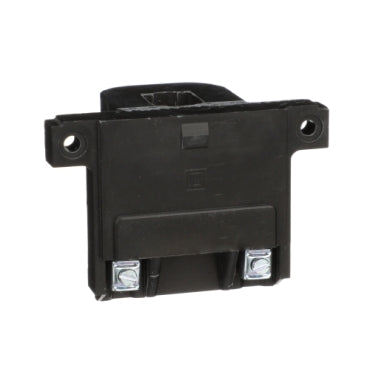

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3104140020

Overview Details for 3104140020

NEMA Motor Starter, Type S, replacement coil, 24VAC 60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting

The coil can be easily replaced in Type S contactors or starters. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SA, series A, 8502SB, or 8502SC contactor, in an 8536SA, series A, 8536SB, or 8536SC starter or an 8903SM lighting contactor. This coil is rated for 24 VAC 60 Hz. The inrush power of this coil is 245 VA. It has an average sealed consumption of 27 VA. This coil has a height of 54.7 mm, a width of 81.5 mm and a depth of 48.3 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.

Specifications

Product or Component Type
Coil
accessory / separate part destination
Class 8502 type SA (series A)/SB/SC contactor, Class 8536 type SA (series A)/SB/SC starter, Class 8903 type SM lighting contactor
NEMA size
0, 00, 1
[Ue] rated operational voltage
24 V AC 60 Hz
Inrush power in VA
245 VA
Average consumption
27 VA
Height
2.15 in (54.7 mm)
Width
3.21 in (81.5 mm)
Depth
1.90 in (48.3 mm)
Category
18079-SPARE PARTS DISCOUNT CP10
Discount Schedule
CP10
GTIN
785901395256
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.10 in (5.334 cm)
Package 1 Width
2.80 in (7.112 cm)
Package 1 Length
3.30 in (8.382 cm)
Package 1 Weight
7.52 oz (213.188 g)
Warranty
18 months
