2S1F | Low voltage transformer, encapsulated dry type, 1 phase, 2kVA, 240x480V primary, 120/240V secondary, Type 3R | Square D by Schneider Electric

Square D | 2S1F

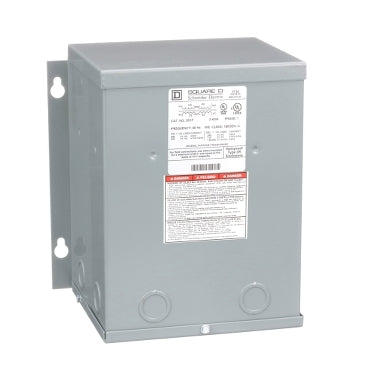

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2S1F

Documents and manuals

Square D 2S1F Documents

Overview

Details for 2S1F

Low voltage transformer, encapsulated dry type, 1 phase, 2kVA, 240x480V primary, 120/240V secondary, Type 3R

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 2 KVA. This transformer has a primary voltage of 240 x 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 9.56 in (H), 8.68 in (W), 6.56 in (D). This product complys to UL & CSA standards.

Specifications

Product or Component Type
Dry Sealed Transformer
Primary to Secondary Voltage
240 x 480 V 120/240 V
Full Capacity Taps
0
Enclosure Code
9A
Phase
1 phase
Power Rating
2 kVA
temperature rise
115 °C
Height
9.56 in (242.82 mm)
Width
8.68 in (220.47 mm)
Depth
6.56 in (166.62 mm)
enclosure mounting
Wall mounted
Net Weight
39.1 lb(US) (17.74 kg);39.11 lb(US) (17.74 kg)
Enclosure Material
Painted sheet steel
Enclosure Type
NEMA 3R
insulation temperature
356 °F (180 °C)
Product Certifications
CSA;UL Listed;cULus
Category
16277-RESIN LVGP XFMR
Discount Schedule
PE2
GTIN
785901019886
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9.50 in (24.13 cm)
Package 1 Width
11.00 in (27.94 cm)
Package 1 Length
12.60 in (32.004 cm)
Package 1 Weight
49.20 lb(US) (22.317 kg)
Warranty
18 months
