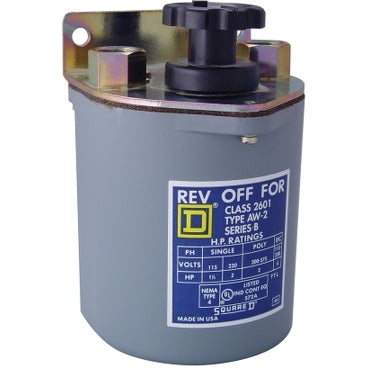

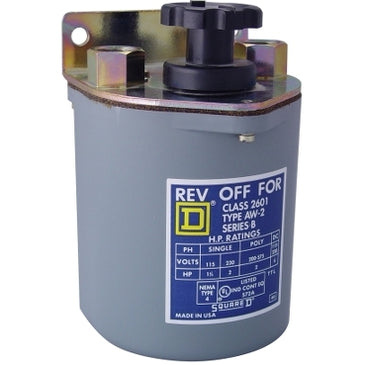

2601BW1 | Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure | Square D by Schneider Electric

Brand: Square DSKU: 2601BW1

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2601BW1

Jump to: Overview & Specifications Reviews

Overview Details for 2601BW1

Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure

2601 reversing drum switches are designed to starting and reversing motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. A NEMA 4 watertight and dusttight enclosure is used to protect this switch. Enclosure is 6.89 inches tall, 4.40 inches wide and 5.50 inches deep. Drum switches are UL listed and CSA certified.

Specifications

Product: Reversing Drum Switch
Enclosure Rating: NEMA 4
Horsepower: 1.5 hp 115 V AC;1 phase;3 hp 230 V AC;1 phase;5 hp 460 V AC;1 phase;5 hp 575 V AC;1 phase;5 hp 200 V AC;3 phase;5 hp 230 V AC;3 phase;7.5 hp 460 V AC;3 phase;7.5 hp 575 V AC;3 phase;2 hp 115 V DC;2 hp 230 V DC
Maximum Rated Voltage: 600 V AC;250 V DC
Number of Poles: 3P
Certifications: CSA;UL Listed
Electrical Connection: Screw-clamp terminals
Type: B
Width: 4.40 in (111.76 mm)
Height: 6.89 in (175.01 mm)
Depth: 5.50 in (139.70 mm)
Category: 21116-2601
Discount Schedule: CP1
GTIN: 785901784449
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.80 in (12.192 cm)
Package 1 Width: 5.00 in (12.7 cm)
Package 1 Length: 8.00 in (20.32 cm)
Package 1 Weight: 3.53 lb(US) (1.601 kg)
Warranty: 18 months
