170ENT11002 | Modicon Momentum - Ethernet communication adaptor - 10 Mbit/s | Square D by Schneider Electric

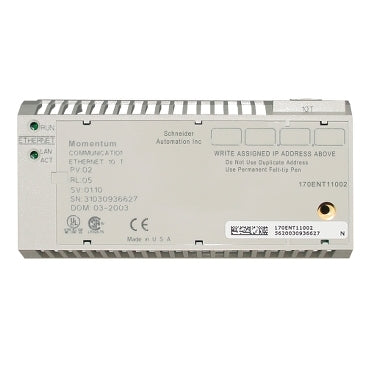

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 170ENT11002

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D 170ENT11002 Documents

Datasheet More Info

Overview

Details for 170ENT11002

Modicon Momentum - Ethernet communication adaptor - 10 Mbit/s

Specifications

Range of Product: Modicon Momentum automation platform
Product or Component Type: Ethernet TCP/IP communication adaptor
communication port protocol: Ethernet TCP/IP
Method of access: Peer to peer, Master/slave
Transmission Rate: 10 Mbit/s
Transmission support medium: Shielded twisted pairs cable
Module configuration: BOOTP server to assign IP parameters
Topology: Multidrop, star network
Port Ethernet: 10BASE-T
number of devices per segment: 0…32
maximum cable distance between devices: 3280.84 ft (1000 m) without repeater
Addressing: Unique IEEE global address, IP address user assigned
Fail state: Fail safe
Control parameter: CRC-32
Supply: From I/O base
Marking: CE
local signalling: for Ethernet network state (LAN) 1 LED (green), for module active (RUN) 1 LED (green)
electrical connection: 1 connector RJ45 for 10BASE-TX
Net Weight: 0.15 lb(US) (0.07 kg)
Product Certifications: UL, FM Class 1 Division 2, CSA
standards: CSA, FM Class 1 Division 2
IP Degree of Protection: IP20
Protective treatment: TC
resistance to electrostatic discharge: 4 kV contact IEC 801-2, 8 kV on air IEC 801-2
resistance to electromagnetic fields: 9.14 V/m (10 V/m) 80...1000 MHz IEC 801-3
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Relative Humidity: 95 % without condensation
Operating altitude: <= 16404.2 ft (5000 m)
Category: 18206-MOMENTUM PROCESSORS,I/O BASES,CONN.
Discount Schedule: PC31
GTIN: 3595862065054
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.13 in (5.4 cm)
Package 1 Width: 7.05 in (17.9 cm)
Package 1 Length: 10.24 in (26.0 cm)
Package 1 Weight: 9.81 oz (278.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 8
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 5.88 lb(US) (2.665 kg)
Warranty: 18 months
