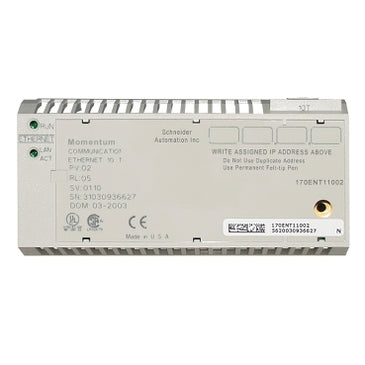

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 170ENT11001

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D 170ENT11001 Documents

Datasheet More Info

Overview

Details for 170ENT11001

Modicon Momentum - Ethernet communication adaptor - 10/100 Mbit/s

This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The ethernet TCP/IP communication adaptor supports multidrop and star network topology. It offers shielded twisted pair cable transmission support medium and 10/100Mbps data transmission rate. The adaptor is accessible through the peer to peer and master/slave method. It is furnished with 1 RJ45 connector for 100BASE-TX. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Specifications

Range of Product: Modicon Momentum automation platform
Product or Component Type: Ethernet TCP/IP communication adaptor
communication port protocol: Ethernet TCP/IP
Method of access: Peer to peer, Master/slave
Transmission Rate: 10/100 Mbit/s
Transmission support medium: Shielded twisted pairs cable
Module configuration: BOOTP server to assign IP parameters
Topology: Multidrop, star network
Port Ethernet: 100BASE-TX
number of devices per segment: 0…32
maximum cable distance between devices: 3280.84 ft (1000 m) without repeater
Addressing: Unique IEEE global address, IP address user assigned
Fail state: Fail safe
Control parameter: CRC-32
Supply: From I/O base
Marking: CE
local signalling: for Ethernet network 10 Mbits/s (10T) 1 LED (green), for Ethernet network state (ST) 1 LED (green), for module active (RUN) 1 LED (green), for Ethernet network 10 Mbits/s (100T) 1 LED (yellow)
electrical connection: 1 connector RJ45 for 100BASE-TX
Net Weight: 0.15 lb(US) (0.07 kg)
Product Certifications: CSA, UL
standards: CSA
IP Degree of Protection: IP20
Protective treatment: TC
resistance to electrostatic discharge: 4 kV contact IEC 801-2, 8 kV on air IEC 801-2
resistance to electromagnetic fields: 9.14 V/m (10 V/m) 80...1000 MHz IEC 801-3
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Relative Humidity: 95 % without condensation
Operating altitude: <= 16404.2 ft (5000 m)
Category: 18206-MOMENTUM PROCESSORS,I/O BASES,CONN.
Discount Schedule: PC31
GTIN: 3595862034302
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.17 in (5.5 cm)
Package 1 Width: 7.05 in (17.9 cm)
Package 1 Length: 10.16 in (25.8 cm)
Package 1 Weight: 8.11 oz (230.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 8
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 5.04 lb(US) (2.285 kg)
Warranty: 18 months
