170AAI14000 | distributed analog input Modicon Momentum - 16 Input | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 170AAI14000
Overview
Details for 170AAI14000

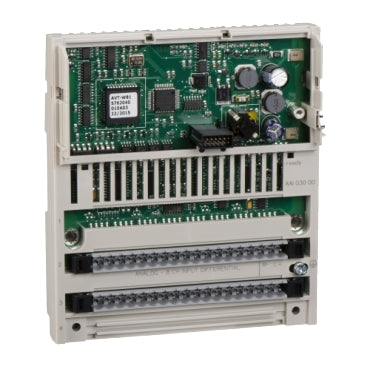

distributed analog input Modicon Momentum - 16 Input
This product is part of the Modicon Momentum range, an offer of controllers for IP20 monoblock I/Os. This analog input base offers 16 inputs with a full 16bit signed resolution. It offers analog input ranges from 4mA to 20mA, ±10V, ±5V. There is an isolation between channels and ground at 1780V AC, supply and ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 16 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. It is suitable for infrastructures and energy, material handling and simple machine control applications. This product is certified by CE, CSA, FM Class 1 Division 2 and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snaps together in various combinations to form versatile control systems or subsystems.Specifications
- Range of Product
- Modicon Momentum automation platform
- Product or Component Type
- Analogue input base
- Analogue input number
- 16
- Analogue Input Type
- Single ended
- Analogue Input Range
- 4...20 mA 12 bits < 0.25 Ohm, +/- 10 V 12 bits + sign > 2200 kOhm, +/- 5 V 12 bits + sign > 2200 kOhm
- type of filter
- Low pass input filter 10 kHz
- Data format
- Full 16 bits signed
- absolute accuracy error
- +/- 0.15 % of full scale 77 °F (25 °C) +/- 10 V, +/- 0.15 % of full scale 77 °F (25 °C) +/- 5 V, +/- 0.25 % full scale 77 °F (25 °C) 4...20 mA, +/- 0.25 % full scale 140 °F (60 °C) +/- 10 V, +/- 0.25 % full scale 140 °F (60 °C) +/- 5 V, +/- 0.45 % full scale 140 °F (60 °C) 4...20 mA
- temperature drift
- 30 %oFS/°C +/- 10 V 140 °F (60 °C), 30 %oFS/°C +/- 5 V 140 °F (60 °C), 60 %oFS/°C 4...20 mA 140 °F (60 °C)
- full scale
- 10 V +/- 10 V, 16 mA 4...20 mA, 5 V +/- 5 V
- Update time
- 25 ms
- isolation between channels and ground
- 1780 V AC for 1 minute
- isolation between supply and ground
- 500 V for 1 minute
- permissible common mode voltage
- 100 V 47...63 Hz DC between channels to ground, 250 V 47...63 Hz AC between channels to ground
- external power requirement
- +/- 30 V DC
- Maximum power dissipation in W
- 5.55 W
- Reverse polarity protection
- Internal
- protection type
- Internal 2 A slow-blow
- associated fuse rating
- 500 mA, fast blow
- Marking
- CE
- local signalling
- for channel status 16 LEDs
- electrical connection
- 2 connectors for removable terminal blocks
- current consumption
- 305 mA 24 V DC
- Depth
- 1.87 in (47.5 mm)
- Height
- 4.92 in (125 mm)
- Width
- 5.57 in (141.5 mm)
- Net Weight
- 0.47 lb(US) (0.215 kg)
- Product Certifications
- UL, FM Class 1 Division 2, CSA
- Protective treatment
- TC
- resistance to electrostatic discharge
- 4 kV contact IEC 801-2, 8 kV on air IEC 801-2
- resistance to electromagnetic fields
- 9.14 V/m (10 V/m) 80...1000 MHz IEC 801-3
- Ambient Air Temperature for Operation
- 32…140 °F (0…60 °C)
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- Relative Humidity
- 95 % without condensation
- Operating altitude
- <= 16404.2 ft (5000 m)
- Category
- 18206-MOMENTUM PROCESSORS,I/O BASES,CONN.
- Discount Schedule
- PC31
- GTIN
- 3595861147690
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.17 in (5.5 cm)
- Package 1 Width
- 7.09 in (18.0 cm)
- Package 1 Length
- 10.24 in (26.0 cm)
- Package 1 Weight
- 13.58 oz (385.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 10
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 8.49 lb(US) (3.85 kg)
- Warranty
- 18 months
