XAPG49504 | PB ENCLOSURE 22MM XAP +OPTIONS | Square D by Schneider Electric

Brand: Square DSKU: XAPG49504

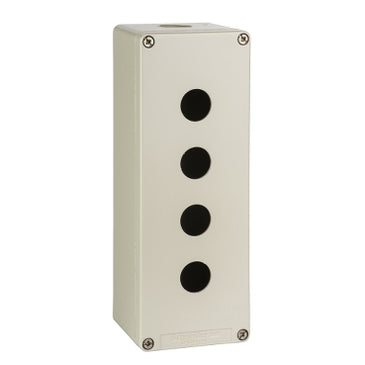

Square D | XAPG49504
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to XAPG49504
Jump to: Overview & Specifications Reviews

Overview Details for XAPG49504

PB ENCLOSURE 22MM XAP +OPTIONS

This grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP, making it ideal for operation in harsh environments It is compatible with Harmony 22mm range pushbuttons, switches and pilot lights

Specifications

Range of Product
Harmony XAP
Product or Component Type
Die-cast empty control station
device short name
XAPG
product destination
For Ø 22 mm control and signalling units
number of cut-out
4 cut-outs
colour of base of enclosure
Grey RAL 7032)
colour of cover
Grey RAL 7032)
control station type
Metal
Material
Die cast zinc
sale per indivisible quantity
1
IP degree of protection
IP65 IEC 60529
resistance to chemical agents
Special treatment can be obtained on request
number of vertical rows
1
number of horizontal rows
4
cut-out dimensions
Ø 22 mm
cable entry
cable gland;1 x cable gland
thread type
3/4 NPT
CAD overall width
3.15 in (80 mm)
CAD overall height
8.66 in (220 mm)
CAD overall depth
3.03 in (77 mm)
Net Weight
3.06 lb(US) (1.390 kg)
compatibility code
XAPG
protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient air temperature for operation
-13…158 °F (-25…70 °C)
electrical shock protection class
Class I IEC 60536;Class I NF C 20-030
IK degree of protection
IK07 EN/IEC 62262
Category
22475-WALL STATIONS
Discount Schedule
CS2
GTIN
3389118381711
Returnability
Yes
Country of origin
MA
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.20 in (13.2 cm)
Package 1 Width
3.46 in (8.8 cm)
Package 1 Length
9.17 in (23.3 cm)
Package 1 Weight
3.47 lb(US) (1.576 kg)
Unit Type of Package 2
S03
Number of Units in Package 2
7
Package 2 Height
11.81 in (30.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
25.42 lb(US) (11.532 kg)
Warranty
18 months
