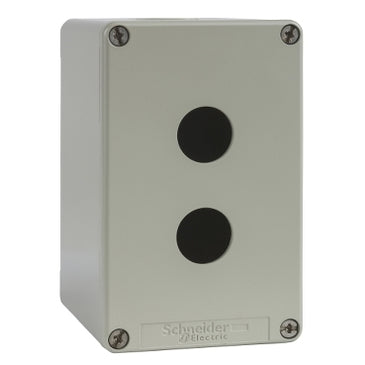

XAPG29502 | Harmony Die-cast empty control station - XAP-G - 22 mm-80x130mm front plate-undrilled | Square D by Schneider Electric

Brand: Square DSKU: XAPG29502

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XAPG29502

Jump to: Overview & Specifications Reviews

Overview Details for XAPG29502

Harmony Die-cast empty control station - XAP-G - 22 mm-80x130mm front plate-undrilled

Harmony Die-cast empty control station

product destination : For Ø 22 mm control and signalling units
product front plate size : 80 x 130 mm
usable depth : 2.93 in (74.5 mm)
number of cut-out : Undrilled
colour of base of enclosure : Grey RAL 7032
colour of cover : Grey RAL 7032
material : Zinc alloy
IP degree of protection : IP65 conforming to IEC 60529, IP657 conforming to NF C 20-010.
product weight : 0.959 kg

This grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP, making it ideal for operation in harsh environments It is compatible with Harmony 22mm range pushbuttons, switches and pilot lights

Specifications

Range of Product: Harmony XAP
Product or Component Type: Die-cast empty control station
device short name: XAPG
product destination: For Ø 22 mm control and signalling units
product front plate size: 80 x 130 mm
usable depth: 2.93 in (74.5 mm)
number of cut-out: Undrilled
colour of base of enclosure: Grey RAL 7032)
colour of cover: Grey RAL 7032)
control station type: Metal
Material: Die cast zinc
sale per indivisible quantity: 1
IP degree of protection: IP65 IEC 60529;IP657 NF C 20-010
resistance to chemical agents: Special treatment can be obtained on request
number of vertical rows: 1
number of horizontal rows: 2
cut-out dimensions: Ø 22 mm
cable entry: cable gland;1 x cable gland
thread type: 3/4 NPT
CAD overall width: 3.15 in (80 mm)
CAD overall height: 5.12 in (130 mm)
CAD overall depth: 3.03 in (77 mm)
Net Weight: 1.81 lb(US) (0.820 kg)
compatibility code: XAPG
protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
electrical shock protection class: Class I IEC 60536;Class I NF C 20-030
IK degree of protection: IK07 EN/IEC 62262
Category: 22475-WALL STATIONS
Discount Schedule: CS2
GTIN: 3389118381834
Returnability: Yes
Country of origin: MA
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.46 in (8.8 cm)
Package 1 Width: 3.74 in (9.5 cm)
Package 1 Length: 6.10 in (15.5 cm)
Package 1 Weight: 33.83 oz (959.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 12
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 26.48 lb(US) (12.01 kg)
Warranty: 18 months
