XAPG19201 | PUSHBUTTON ENCLOSURE 30MM XAP +OPTIONS | Square D by Schneider Electric

Brand: Square DSKU: XAPG19201

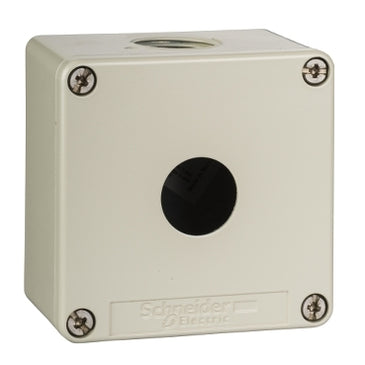

Square D | XAPG19201
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to XAPG19201
Jump to: Overview & Specifications Reviews

Overview Details for XAPG19201

PUSHBUTTON ENCLOSURE 30MM XAP +OPTIONS

This Harmony XAPG, is a die-cast empty control station. It has 1 cut-out diameter 22mm for 1 function. Designed for industry, it offers operating simplicity, flexibility and robustness. Its protection index is IP65. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides a zinc alloy grey (RAL 7032) enclosure. It is designed for machines builders (automotive, textile, wood) and services and infrastructures, energy distribution, building, airport. It is compatible with the Harmony XB4 range of control and signaling units.

Specifications

Range of Product
Harmony XAP
Product or Component Type
Die-cast empty control station
device short name
XAPG
product destination
For Ø 22 mm control and signalling units
number of cut-out
1 cut-out
colour of base of enclosure
Grey RAL 7032)
colour of cover
Grey RAL 7032)
control station type
Metal
Material
Die cast zinc
sale per indivisible quantity
1
IP degree of protection
IP65 IEC 60529;IP657 NF C 20-010
resistance to chemical agents
Special treatment can be obtained on request
number of vertical rows
1
number of horizontal rows
1
cut-out dimensions
Ø 22 mm
cable entry
cable gland;1 x cable gland
thread type
3/4 NPT
CAD overall width
3.15 in (80 mm)
CAD overall height
3.15 in (80 mm)
CAD overall depth
2.03 in (51.5 mm)
Net Weight
1.16 lb(US) (0.524 kg)
compatibility code
XAPG
protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
electrical shock protection class
Class I IEC 60536;Class I NF C 20-030
IK degree of protection
IK07 EN/IEC 62262
Category
22475-WALL STATIONS
Discount Schedule
CS2
GTIN
3389118381926
Returnability
Yes
Country of origin
MA
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.54 in (9.0 cm)
Package 1 Width
3.39 in (8.6 cm)
Package 1 Length
3.54 in (9.0 cm)
Package 1 Weight
18.69 oz (530.0 g)
Unit Type of Package 2
S02
Number of Units in Package 2
12
Package 2 Height
5.91 in (15.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
14.68 lb(US) (6.659 kg)
Warranty
18 months
