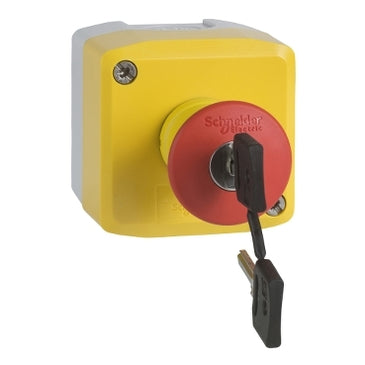

XALK188H7 | Harmony XALK Complete Control Station, Yellow with 1 Red Mushroom Head Pushbutton, 40mm Key Release, 1 NC, NEMA 13/4X | Square D by Schneider Electric

Brand: Square DSKU: XALK188H7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XALK188H7

Jump to: Overview & Specifications Reviews

Overview Details for XALK188H7

Harmony XALK Complete Control Station, Yellow with 1 Red Mushroom Head Pushbutton, 40mm Key Release, 1 NC, NEMA 13/4X

Harmony XALK Complete Control Station

Color of Cover: Yellow RAL 1021
Color of Base: Light Grey RAL 7035
Operator Profile: 1 Mushroom Head Pushbutton
Operators Description: Red Unmarked 1 NC
Reset: Key release
Degree of protection: NEMA 13/4X

Specifications

Range of Product: Harmony XALK
Product or Component Type: Complete control station
device short name: XALK
product destination: For XB5 Ø 22 mm control and signalling units
control station application: Emergency stop function;Emergency switching off function
colour of base of enclosure: Light grey RAL 7035)
colour of cover: Yellow RAL 1021)
Material: Polycarbonate
operator profile: 1 mushroom head push-button
operators description: Red unmarked 1 NC
Reset: Key release
control station composition: 1 mushroom head Ø 40 mm push-button;red 1 NC unmarked
contact operation: Slow-break
cable entry: 1 knock-out for cable entry 0.00…0.55 in (0…14 mm);2 knock-outs for Pg 13 cable gland and ISO M20 0.00…0.47 in (0…12 mm)
Net Weight: 0.41 lb(US) (0.188 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
key number: 455
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state);0.17 in (4.3 mm) total travel)
operating force: 44 N
mechanical durability: 300000 cycles
connections - terminals: Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;>= 1 x 0.22 mm² without cable end EN/IEC 60947-1
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN/IEC 60947-1
shape of screw head: Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN/IEC 60947-1
[Ie] rated operational current: 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V;1 mA EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V;5 mA EN/IEC 60947-5-4
protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536
IP degree of protection: IP66 IEC 60529;IP67;IP69;IP69K
NEMA degree of protection: NEMA 13;NEMA 4X
IK degree of protection: IK03 EN 50102
Standards: EN/IEC 60947-5-1;EN/ISO 13850;JIS C 4520;EN/IEC 60947-5-5;EN/IEC 60947-5-4;CSA C22.2 No 14;UL 508;IEC 60364-5-53;EN/IEC 60947-1;EN/IEC 60204-1
Product Certifications: UL Listed;CSA
vibration resistance: 5 gn 12…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22475-WALL STATIONS
Discount Schedule: CS2
GTIN: 3606480502736
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.78 in (9.6 cm)
Package 1 Width: 2.76 in (7.0 cm)
Package 1 Length: 2.76 in (7.0 cm)
Package 1 Weight: 6.63 oz (188.0 g)
Warranty: 18 months
