XALK178H7 | Harmony XALK Complete Control Station, Yellow with 1 Red Mushroom Head Pushbutton, 40mm Turn to Release, 1 NC, NEMA 13/4X | Square D by Schneider Electric

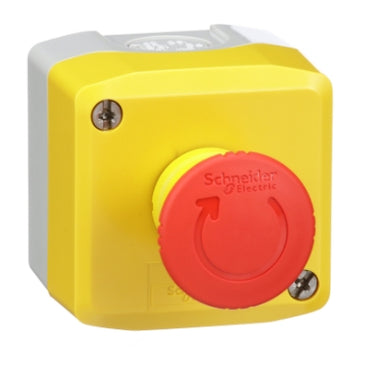

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XALK178H7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D XALK178H7 Documents

Datasheet More Info

Overview

Details for XALK178H7

Harmony XALK Complete Control Station, Yellow with 1 Red Mushroom Head Pushbutton, 40mm Turn to Release, 1 NC, NEMA 13/4X

Harmony XALK Complete Control Station

Color of Cover: Yellow RAL 1021
Color of Base: Light Grey RAL 7035
Operator Profile: 1 Mushroom Head Pushbutton
Operators Description: Red Unmarked 1 NC
Reset: 40mm Turn to Release
Degree of protection: NEMA 13/4X

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Range of Product: Harmony XALK
Product or Component Type: Complete control station
device short name: XALK
product destination: For XB5 Ø 22 mm control and signalling units
control station application: Emergency stop function;Emergency switching off function
colour of base of enclosure: Light grey RAL 7035)
colour of cover: Yellow RAL 1021)
Material: Polycarbonate
operator profile: 1 mushroom head push-button
operators description: Red unmarked 1 NC
Reset: Turn to release
control station composition: 1 mushroom head Ø 40 mm push-button;red 1 NC unmarked
contact operation: Slow-break
cable entry: 1 knock-out for cable entry 0.00…0.55 in (0…14 mm);2 knock-outs for Pg 13 cable gland and ISO M20 0.00…0.47 in (0…12 mm)
Net Weight: 0.43 lb(US) (0.194 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state);0.17 in (4.3 mm) total travel)
operating force: 44 N
mechanical durability: 300000 cycles
connections - terminals: Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;>= 1 x 0.22 mm² without cable end EN/IEC 60947-1
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN/IEC 60947-1
shape of screw head: Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN/IEC 60947-1
[Ie] rated operational current: 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V;1 mA EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V;5 mA EN/IEC 60947-5-4
protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536
IP degree of protection: IP66 IEC 60529;IP67;IP69;IP69K
NEMA degree of protection: NEMA 13;NEMA 4X
IK degree of protection: IK03 EN 50102
Standards: EN/IEC 60947-5-1;EN/IEC 60947-1;UL 508;EN/ISO 13850;JIS C 4520;EN/IEC 60947-5-5;EN/IEC 60947-5-4;EN/IEC 60204-1;CSA C22.2 No 14;IEC 60364-5-53
Product Certifications: CSA;UL Listed
vibration resistance: 5 gn 12…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22467-PUSHBUTTONS;22MM(PLASTIC) NEW
Discount Schedule: CS2
GTIN: 3389119413961
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.83 in (7.2 cm)
Package 1 Width: 2.91 in (7.4 cm)
Package 1 Length: 3.86 in (9.8 cm)
Package 1 Weight: 5.82 oz (165.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 40
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 15.36 lb(US) (6.967 kg)
Warranty: 18 months
