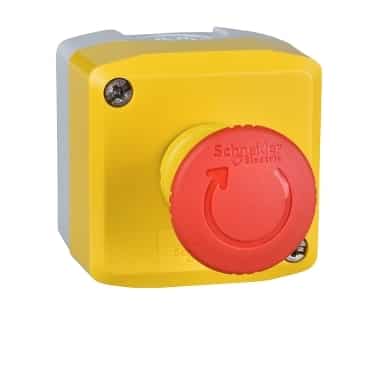

Harmony XALK Complete Control Station, Yellow with 1 Red Mushroom Head Pushbutton, 40mm Turn to Release, 1 NO + 2 NC, NEMA 13/4X

Harmony XALK Complete Control Station
  • Color of Cover: Yellow RAL 1021
  • Color of Base: Light Grey RAL 7035
  • Operator Profile: 1 Mushroom Head Pushbutton
  • Operators Description: Red Unmarked 1 NO + 2 NC
  • Reset: 40mm Turn to Release
  • Degree of protection: NEMA 13/4X
This Harmony XALK yellow (RAL1021) control station is ideal for a clearly visible emergency shutdown of any machine. This yellow control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It offers emergency stop and emergency switching off functions. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments.

Specifications

Range of Product
Harmony XALK
Product or Component Type
Complete control station
device short name
XALK
product destination
For XB5 Ø 22 mm control and signalling units
control station application
Emergency switching off function;Emergency stop function
colour of base of enclosure
Light grey RAL 7035)
colour of cover
Yellow RAL 1021)
Material
Polycarbonate
operator profile
1 mushroom head push-button
operators description
Red unmarked 1 NO + 2 NC
Reset
Turn to release
control station composition
1 mushroom head Ø 40 mm push-button;red 1 NO + 2 NC unmarked
contact operation
Slow-break
cable entry
1 knock-out for cable entry 0.00…0.55 in (0…14 mm);2 knock-outs for Pg 13 cable gland and ISO M20 0.00…0.47 in (0…12 mm)
Net Weight
0.43 lb(US) (0.194 kg)
resistance to high pressure washer
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
positive opening
With EN/IEC 60947-5-1 appendix K
operating travel
0.06 in (1.5 mm) NC changing electrical state);0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
operating force
44 N NC + NO changing electrical state
mechanical durability
300000 cycles
connections - terminals
Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;>= 1 x 0.22 mm² without cable end EN/IEC 60947-1
tightening torque
7.08…10.62 lbf.in (0.8…1.2 N.m) EN/IEC 60947-1
shape of screw head
Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material
Silver alloy (Ag/Ni)
short-circuit protection
10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current
10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage
600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV EN/IEC 60947-1
[Ie] rated operational current
3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical durability
1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability
Λ < 10exp(-6) 5 V;1 mA EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V;5 mA EN/IEC 60947-5-4
protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529;IP67;IP69;IP69K
NEMA degree of protection
NEMA 13;NEMA 4X
IK degree of protection
IK03 EN 50102
Standards
EN/IEC 60947-1;JIS C 4520;CSA C22.2 No 14;EN/IEC 60947-5-1;IEC 60364-5-53;EN/ISO 13850;EN/IEC 60204-1;EN/IEC 60947-5-4;EN/IEC 60947-5-5;UL 508
vibration resistance
5 gn 12…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category
22475-WALL STATIONS
Discount Schedule
CS2
GTIN
3389110113686
Returnability
Yes
Country of origin
CZ
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.76 in (7 cm)
Package 1 Width
2.76 in (7 cm)
Package 1 Length
3.86 in (9.8 cm)
Package 1 Weight
6.31 oz (179 g)
Unit Type of Package 2
S03
Number of Units in Package 2
40
Package 2 Height
11.81 in (30 cm)
Package 2 Width
11.81 in (30 cm)
Package 2 Length
15.75 in (40 cm)
Package 2 Weight
16.85 lb(US) (7.644 kg)
Unit Type of Package 3
P06
Number of Units in Package 3
320
Package 3 Height
30.31 in (77 cm)
Package 3 Width
31.50 in (80 cm)
Package 3 Length
23.62 in (60 cm)
Package 3 Weight
155.48 lb(US) (70.524 kg)
Warranty
18 months
