XALK178 | Harmony XALK Complete Control Station, Yellow with 1 Red Mushroom Head Pushbutton, 40mm Turn to Release, 1 NC, NEMA 13/4X | Square D by Schneider Electric

Brand: Square DSKU: XALK178

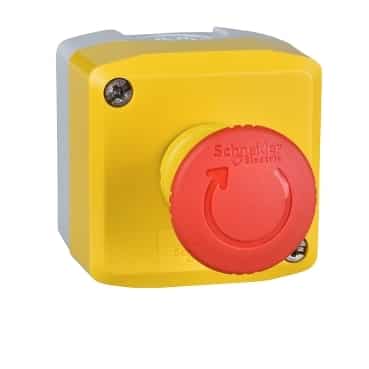

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XALK178

Jump to: Overview & Specifications Reviews

Overview Details for XALK178

Harmony XALK Complete Control Station, Yellow with 1 Red Mushroom Head Pushbutton, 40mm Turn to Release, 1 NC, NEMA 13/4X

Harmony XALK Complete Control Station

Color of Cover: Yellow RAL 1021
Color of Base: Light Grey RAL 7035
Operator Profile: 1 Mushroom Head Pushbutton
Operators Description: Red Unmarked 1 NC
Reset: 40mm Turn to Release
Degree of protection: NEMA 13/4X

This Harmony XALK yellow (RAL1021) control station is ideal for a clearly visible emergency shutdown of any machine. This yellow control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It offers emergency stop and emergency switching off functions. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments.

Specifications

Range of Product: Harmony XALK
Product or Component Type: Complete control station
device short name: XALK
product destination: For XB5 Ø 22 mm control and signalling units
control station application: Emergency switching off function;Emergency stop function
colour of base of enclosure: Light grey RAL 7035)
colour of cover: Yellow RAL 1021)
Material: Polycarbonate
operator profile: 1 mushroom head push-button
operators description: Red unmarked 1 NC
Reset: Turn to release
control station composition: 1 mushroom head Ø 40 mm push-button;red 1 NC unmarked
contact operation: Slow-break
cable entry: 1 knock-out for cable entry 0.00…0.55 in (0…14 mm);2 knock-outs for Pg 13 cable gland and ISO M20 0.00…0.47 in (0…12 mm)
Net Weight: 0.43 lb(US) (0.194 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state);0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
operating force: 44 N NC + NO changing electrical state
mechanical durability: 300000 cycles
connections - terminals: Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;>= 1 x 0.22 mm² without cable end EN/IEC 60947-1
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN/IEC 60947-1
shape of screw head: Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN/IEC 60947-1
[Ie] rated operational current: 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V;1 mA EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V;5 mA EN/IEC 60947-5-4
protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536
IP degree of protection: IP66 IEC 60529;IP67;IP69;IP69K
NEMA degree of protection: NEMA 13;NEMA 4X
IK degree of protection: IK03 EN 50102
Standards: EN/IEC 60204-1;EN/IEC 60947-1;EN/IEC 60947-5-4;EN/ISO 13850;JIS C 4520;IEC 60364-5-53;EN/IEC 60947-5-5;UL 508;CSA C22.2 No 14;EN/IEC 60947-5-1
vibration resistance: 5 gn 12…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22475-WALL STATIONS
Discount Schedule: CS2
GTIN: 3389119027892
Returnability: No
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.82 in (9.7 cm)
Package 1 Width: 2.76 in (7 cm)
Package 1 Length: 2.76 in (7 cm)
Package 1 Weight: 5.57 oz (158 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 40
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 14.96 lb(US) (6.786 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 320
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 23.62 in (60 cm)
Package 3 Length: 31.50 in (80 cm)
Package 3 Weight: 138.42 lb(US) (62.788 kg)
Warranty: 18 months
