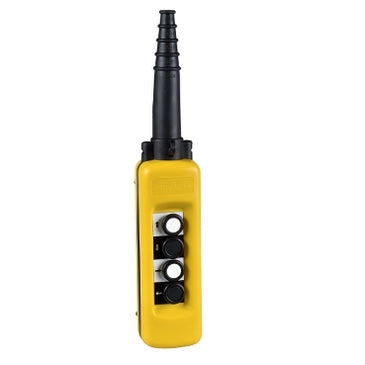

XACA471H7 | Harmony XAC Pendant Station, 4 Pushbuttons, Screw Clamp Terminals, IP65 | Square D by Schneider Electric

Brand: Square DSKU: XACA471H7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XACA471H7

Jump to: Overview & Specifications Reviews

Overview Details for XACA471H7

Harmony XAC Pendant Station, 4 Pushbuttons, Screw Clamp Terminals, IP65

Harmony XAC Pendant Station

Control Station Color: Yellow
Control Station Composition: 4 Pushbuttons
Electrical Circuit Type: Control Circuit
Degree of Protection: IP65 IEC 60529

Specifications

Range of Product: Harmony XAC
Product or Component Type: Pendant control station
device short name: XACA
control station type: Double insulated
Enclosure Material: Polypropylene
electrical circuit type: Control circuit
Enclosure Type: Complete ready for use
control station application: Control of single speed hoist motor
control station composition: 4 push-buttons
control button type: First push-button 1 NO raise;slow;Second push-button 1 NO lower;slow;Fourth push-button 1 NO left;slow;Third push-button 1 NO right;slow
product compatibility: ZB2BE101 for each direction
mechanical interlocking: With mechanical interlocking between pairs
control station colour: Yellow
connections - terminals: Screw clamp terminals;1 x 0.5...1 x 2.5 mm² without cable end;Screw clamp terminals;1 x 0.5...2 x 1.5 mm² with cable end
Standards: EN/IEC 60947-5-1;EN/IEC 60204-32;CSA C22.2 No 14;UL 508
Product Certifications: CSA;UL;GOST;CCC
protective treatment: TH
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
vibration resistance: 15 gn 10…500 Hz)IEC 60068-2-6
shock resistance: 100 gn IEC 60068-2-27
overvoltage category: Class II IEC 61140
IP degree of protection: IP65 conforming to IEC 60529
IK degree of protection: IK08 EN 50102
mechanical durability: 1000000 cycles
cable entry: Rubber sleeve with stepped entry 0.31…1.02 in (8…26 mm)
contact code designation: A600 AC-15;Ue = 240 V;Ie = 3 A IEC 60947-5-1 appendix A;A600 AC-15;Ue = 600 V;Ie = 1.2 A IEC 60947-5-1 appendix A;Q600 DC-13;Ue = 250 V;Ie = 0.27 A IEC 60947-5-1 appendix A;Q600 DC-13;Ue = 600 V;Ie = 0.1 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 10 A
[Ui] rated insulation voltage: 600 V 3)
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
contact operation: Slow-break
maximum resistance across terminals: 25 MOhm
operating force: 10 N push-button
short-circuit protection: 10 A fuse protection cartridge gG
rated operational power in W: 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C;48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C;65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
terminals description ISO n°1: (13-14)NO
terminal identifier: (13-14)NO;(11-12)NC
Net Weight: 1.38 lb(US) (0.625 kg)
Category: 18407-WORLD SERVICE PARTS(SENSORS)
Discount Schedule: T
GTIN: 3389110321166
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.40 in (8.64 cm)
Package 1 Width: 3.60 in (9.14 cm)
Package 1 Length: 17.50 in (44.45 cm)
Package 1 Weight: 1.61 lb(US) (0.73 kg)
Warranty: 18 months
