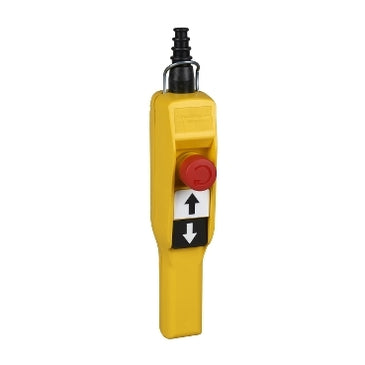

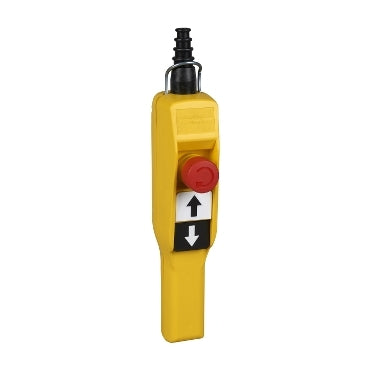

XACA2013 | Harmony XAC Pendant Station XAC-A Pistol Grip, 2 Push Buttons, 1 Emergency Stop, IP65 | Square D

Brand: Square DSKU: XACA2013

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XACA2013

Jump to: Overview & Specifications Reviews

Overview Details for XACA2013

Harmony XAC Pendant Station XAC-A Pistol Grip, 2 Push Buttons, 1 Emergency Stop, IP65

Harmony XAC Pendant Station XAC-A Pistol Grip

Control Station Color: Yellow
Control Station Type: Double Insulated
Electrical Circuit Type: Control Circuit
Degree of Protection: IP65 IEC 60529

This Harmony XAC, yellow pendant station for hoist motor with pistol grip has single speed, operates with slow break mechanism. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its ergonomic pistol grip allows single handed control of your hoist and crane. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Specifications

Range of Product: Harmony XAC
Product or Component Type: Pendant control station
device short name: XACA pistol grip
control station type: Double insulated
Enclosure Material: Polypropylene
Control Type: Intuitive
electrical circuit type: Control circuit
Enclosure Type: Complete ready for use
control station application: Control of single speed hoist motor
control station composition: 2 push-buttons + 1 emergency stop
control button type: First push-button 1 NO raise;slow;Second push-button 1 NO lower;slow;Stop push-button Ø 30 mm 1 NC latching
product compatibility: ZB2BE101 for each direction;ZB2BE102 for emergency stop
mechanical interlocking: With mechanical interlocking
control station colour: Yellow
connections - terminals: Screw clamp terminals;1 x 2.5 mm² with or without cable end;Screw clamp terminals;2 x 1.5 mm² with or without cable end
Standards: CSA C22.2 No 14;EN/IEC 60947-5-1;EN/IEC 60204-32;UL 508
Product Certifications: CSA;UL
protective treatment: TH
Ambient air temperature for operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
vibration resistance: 15 gn 10…500 Hz)IEC 60068-2-6
shock resistance: 100 gn IEC 60068-2-27
overvoltage category: Class II IEC 61140
IP degree of protection: IP65 conforming to IEC 60529
IK degree of protection: IK08 EN 50102
mechanical durability: 1000000 cycles
cable entry: Rubber sleeve with stepped entry 0.28…0.59 in (7…15 mm)
contact code designation: A600 AC-15;Ue = 240 V;Ie = 3 A IEC 60947-5-1 appendix A;A600 AC-15;Ue = 600 V;Ie = 1.2 A IEC 60947-5-1 appendix A;Q600 DC-13;Ue = 250 V;Ie = 0.27 A IEC 60947-5-1 appendix A;Q600 DC-13;Ue = 600 V;Ie = 0.1 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 10 A
[Ui] rated insulation voltage: 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
contact operation: Slow-break
maximum resistance across terminals: 25 MOhm
operating force: 13…15 N
short-circuit protection: 10 A fuse protection cartridge gG
rated operational power in W: 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C;48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C;65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
terminals description ISO n°1: (13-14)NO
terminals description ISO n°2: (11-12)NC
terminal identifier: (11-12)NC;(13-14)NO
Net Weight: 0.68 lb(US) (0.31 kg)
Category: 22473-PUSHBUTTON;PENDANTS
Discount Schedule: CS2
GTIN: 3389110558777
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.17 in (5.5 cm)
Package 1 Width: 3.54 in (9.0 cm)
Package 1 Length: 11.81 in (30.0 cm)
Package 1 Weight: 11.82 oz (335.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 15
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 12.08 lb(US) (5.48 kg)
Warranty: 18 months
