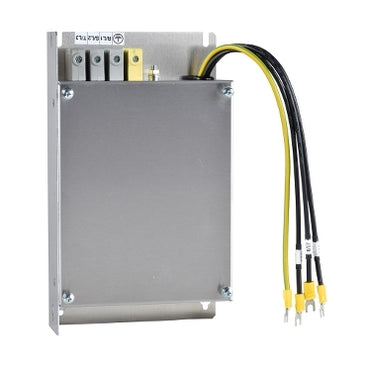

Additional EMC Input Filter, 3-Phase Supply, 47A, IP20

Additional EMC Input Filter

Rated Current: 47A
Network Number of Phases: 3 Phases
Electrical Connection: Terminal 25 mm2 AWG 2
IP Degree of Protection: IP20, IP41 (upper part)

Specifications

Range of Product: Altivar
Product or Component Type: EMC input filter
Range Compatibility: Lexium 05;Lexium 23 Plus;Altivar Machine ATV320;Altivar 212;Altivar 312;Altivar 31C;Altivar 312 Solar
product compatibility: Servo drive LXM237.5 kW;ATV212HD11N4;ATV212HU55M3X;ATV212HU75M3X;ATV212HU75N4;ATV31CU55N4;ATV31CU75N4;LXM05AD57N4;LXM05BD57N4;LXM05CD57N4;ATV312HU55M3;ATV312HU75M3;ATV312HU55N4;ATV312HU75N4;Variable speed drive ATV320...C5.5 kW;200...240 V three phase;Variable speed drive ATV320...C7.5 kW;200...240 V three phase
Product Specific Application: Radio interference input filter
Line Rated Current: 47 A
thermal losses: 1.9 W ATV21HU75N4;19.3 W ATV31CU55N4;3.7 W ATV21HU55M3X;3.9 W ATV21HD11N4;6.8 W ATV21HU75M3X
Phase: Three phase
electrical connection: Terminal 25 mm² AWG 2
tightening torque: 39.83 lbf.in (4.5 N.m)
maximum earth leakage current: 45 mA 50 Hz;20.6 mA 480 V 60 Hz;42.8 mA 480 V 60 Hz
power supply voltage: 200…240 V;380…500 V
tolerance: 10 %
Net Weight: 6.94 lb(US) (3.15 kg)
IP degree of protection: IP20;IP41 upper part)
relative humidity: 0…93 % IEC 68-2-3
ambient air temperature for operation: 14…122 °F (-10…50 °C)
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
operating altitude: <= 3280.84 ft (1000 m) without current derating;<= 3280.84 ft (1000 m) without derating;3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
vibration resistance: 1 gn 13…150 Hz)IEC 60068-2-6;1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance: 15 gn 11 ms EN/IEC 60068-2-27
standards: EN 133200;EN/IEC 61800-3
Category: 22154-ATV320/ATV312/ATV32 ACCESSORIES
Discount Schedule: CP4B
GTIN: 3389110690729
Returnability: No
Country of origin: TH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.76 in (7.0 cm)
Package 1 Width: 9.25 in (23.5 cm)
Package 1 Length: 18.50 in (47.0 cm)
Package 1 Weight: 6.62 lb(US) (3.001 kg)
Unit Type of Package 2: S06
Number of Units in Package 2: 22
Package 2 Height: 29.53 in (75.0 cm)
Package 2 Width: 31.50 in (80.0 cm)
Package 2 Length: 23.62 in (60.0 cm)
Package 2 Weight: 167.60 lb(US) (76.022 kg)
Warranty: 18 months
