VU-7323-674-4-06 | VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, 250 PSI; Act (M400A-VB): Elec, Float/Prop, NSR, 24 VAC/VDC, 20-29 VDC, TB, 89 lbf, Linear, N1 | Schneider Electric

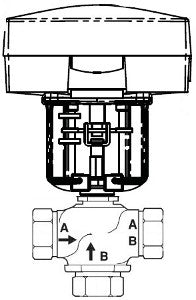

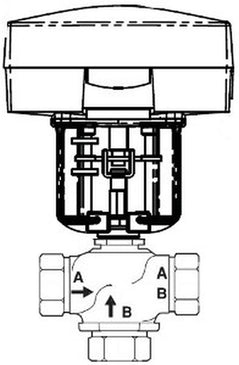

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VU-7323-674-4-06
Overview
Details for VU-7323-674-4-06
VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, 250 PSI; Act (M400A-VB): Elec, Float/Prop, NSR, 24 VAC/VDC, 20-29 VDC, TB, 89 lbf, Linear, N1
Valve Assembly:- Body Size: 3/4 in
- Configuration: 3-Way Diverting
- Type: Globe
- Connection: NPT
- Stem Flow Action: Stem up flow B to AB
- Material Trim: Brass
- Flow Coefficient: 7.5 cv
- Close-Off Pressure: 250 PSI
- Actuator Type: Electric
- Control Signal: Floating, Proportional
- Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
- Leads and Connections: Terminal Block
- Force: 89 lbf
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Valve Body: VB-7323-0-4-06
- Valve Range: Venta
- Valve Linkage: None, tool-less connection
- Actuator: M400A-VB
- Actuator Range: FORTA
Product Alert: Not for use with steam
Specifications
Item Number | VU-7323-674-4-06 |
Brand | Schneider Electric |
Control Input | Floating Point |
Control Valves Type | Globe Valve |
CV / GPM | 7.5 Cv |
End Switch | Yes |
Housing | NEMA 1 |
Spring Return | Non-Spring Return |
Valve Size | 0.75" - 3 Way |
Voltage | 24V |
