VT2325H23A02A | VB: 3/4 in, 2W, Zone, NPT, BR, 5 cv, 25 PSI; Act (AH23A02A): Elec, 2Pos, SR, NO, 24 VAC, App, SPDT, N1 | Schneider Electric

Brand: Schneider ElectricSKU: VT2325H23A02A

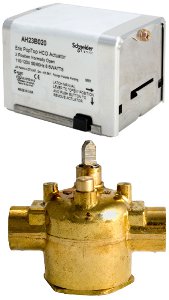

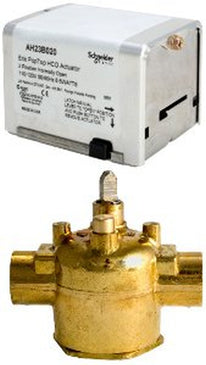

Schneider Electric | VT2325H23A02A
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VT2325H23A02A
Jump to: Overview & Specifications Reviews

Overview Details for VT2325H23A02A

VB: 3/4 in, 2W, Zone, NPT, BR, 5 cv, 25 PSI; Act (AH23A02A): Elec, 2Pos, SR, NO, 24 VAC, App, SPDT, N1

Valve Assembly:
  • Body Size: 3/4 in
  • Configuration: 2-Way
  • Type: Zone
  • Connection: NPT
  • Material Trim: Brass
  • Flow Coefficient: 5 cv
  • Control Media: Glycol 25 to 50% and Water
  • Product Line: Schneider Electric
  • Product Range: Erie PopTop
  • Product Series: VT2
Product Alert: Not for use with steam
  • Close-Off Pressure: 25 PSI
  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally open
  • Power Input Voltage: 24 VAC
  • Leads and Connections: 18 in Appliance
  • Mechanical Movement: Rotary
  • Auxiliary Switch: 1 SPDT
  • Protection Rating: NEMA 1
    • Assembly Components:
    • Valve Body: VT2325
    • Valve Linkage: None, tool-less connection
    • Actuator: AH23A02A
    • Actuator Range: Erie PopTop

    Product Alert: Not for use with steam

    Specifications

    Item Number VT2325H23A02A
    Brand Schneider Electric
    Control Input On/Off
    Control Valves Type Zone Valve
    CV / GPM 4.99 Cv
    End Switch Yes
    Housing NEMA 1
    Spring Return Spring Return
    Valve Size 0.75" - 2 Way
    Voltage 24V
