VT2213G14T020 | VT2213G14T020 | Schneider Electric

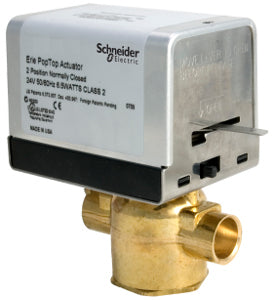

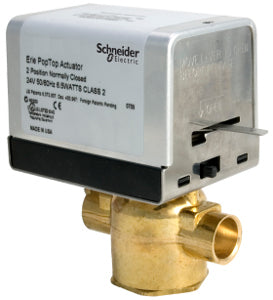

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VT2213G14T020
Documents and manuals
Schneider Electric VT2213G14T020 Documents
Overview
Details for VT2213G14T020
VT2213G14T020
Valve Assembly:- Body Size: 1/2 in
- Configuration: 2-Way
- Type: Zone
- Connection: Sweat
- Material Trim: Brass
- Flow Coefficient: 3.5 cv
- Control Media: Glycol 25 to 50% and Water
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: VT2
- Close-Off Pressure: 25 PSI
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 277 VAC
- Leads and Connections: 18 in Appliance
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1
- Valve Body: VT2213
- Valve Linkage: None, tool-less connection
- Actuator: AG14T020
- Actuator Range: Erie PopTop
Product Alert: Not for use with steam
Specifications
| Item Number | VT2213G14T020 |
| Brand | Schneider Electric |
| Control Input | On/Off |
| Control Valves Type | Zone Valve |
| CV / GPM | 3.5 Cv |
| End Switch | No |
| Housing | NEMA 1 |
| Spring Return | Spring Return |
| Valve Size | 0.5" - 2 Way |
| Voltage |
