VSUS-630C-F32-L-18 | VB: 10 in, 3W Mix/Div, BFV, FLG, Under, FE, 5430 cv, 50 PSI; Act (BRY-S70-24-0201-SV): Elec, Prop, NSR, 24 VAC, TB, 600 in-lb, SPDT, HTR | Schneider Electric

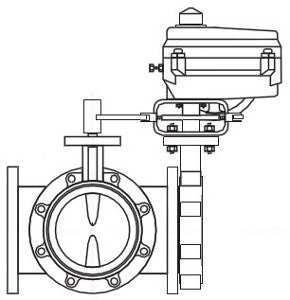

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VSUS-630C-F32-L-18
Overview
Details for VSUS-630C-F32-L-18
VB: 10 in, 3W Mix/Div, BFV, FLG, Under, FE, 5430 cv, 50 PSI; Act (BRY-S70-24-0201-SV): Elec, Prop, NSR, 24 VAC, TB, 600 in-lb, SPDT, HTR
Valve Assembly:- Body Size: 10 in
- Configuration: 3-Way Mixing/Diverting
- Type: Butterfly
- Connection: Flanged
- Body Style: Lug
- Disc Shape: Undercut
- Material Disc: Ductile Iron - Nylon 11 Coated
- Flow Coefficient: 5430 cv
- Close-Off Pressure: 50 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC
- Leads and Connections: Terminal Block
- Torque: 600 in-lb
- Mechanical Movement: Rotary
- Auxiliary Switch: 2 SPDT
- Additional Features: Heater
- Protection Rating: NEMA 4
- Valve Body: VBU-6301-0-L-18
- Valve Linkage: Included with assembly
- Actuator: BRY-S70-24-0201-SV
Product Alert: Not for use with steam.
Specifications
| Item Number | VSUS-630C-F32-L-18 |
| Brand | Schneider Electric |
| freeship | upsground |
