VSFS-630C-F22-L-14 | VB: 4 in, 3W Mix/Div, BFV, FLG, Full, FE, 841 cv, 175 PSI; Act (BRY-S70-24-0121-SV): Elec, Prop, NSR, 24 VAC, TB, 600 in-lb, SPDT, HTR | Schneider Electric

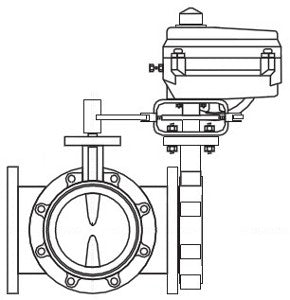

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VSFS-630C-F22-L-14
Overview
Details for VSFS-630C-F22-L-14
VB: 4 in, 3W Mix/Div, BFV, FLG, Full, FE, 841 cv, 175 PSI; Act (BRY-S70-24-0121-SV): Elec, Prop, NSR, 24 VAC, TB, 600 in-lb, SPDT, HTR
Valve Assembly:- Body Size: 4 in
- Configuration: 3-Way Mixing/Diverting
- Type: Butterfly
- Connection: Flanged
- Body Style: Lug
- Disc Shape: Full
- Material Disc: Ductile Iron - Nylon 11 Coated
- Flow Coefficient: 841 cv
- Close-Off Pressure: 175 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC
- Leads and Connections: Terminal Block
- Torque: 600 in-lb
- Mechanical Movement: Rotary
- Auxiliary Switch: 2 SPDT
- Additional Features: Heater
- Protection Rating: NEMA 4
- Valve Body: VBF-6301-0-L-14
- Valve Linkage: Included with assembly
- Actuator: BRY-S70-24-0121-SV
Product Alert: Not for use with steam.
Specifications
Item Number | VSFS-630C-F22-L-14 |
Brand | Schneider Electric |
freeship | upsground |
