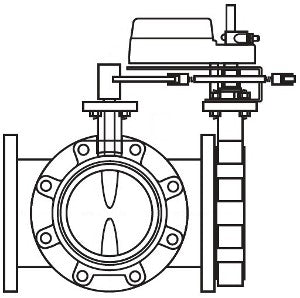

VSF-630C-E25-L-12 | VB: 2-1/2 in, 3W Mix/Div, BFV, FLG, Full, FE, 282 cv, 175 PSI; Act (BRY-NR-2224-541): Elec, Prop, NSR, 24 VAC/VDC, TB, 210 in-lb | Schneider Electric

VB: 2-1/2 in, 3W Mix/Div, BFV, FLG, Full, FE, 282 cv, 175 PSI; Act (BRY-NR-2224-541): Elec, Prop, NSR, 24 VAC/VDC, TB, 210 in-lb

• Body Size: 2-1/2 in
• Configuration: 3-Way Mixing/Diverting
• Type: Butterfly
• Connection: Flanged
• Body Style: Lug
• Disc Shape: Full
• Material Disc: Ductile Iron - Nylon 11 Coated
• Flow Coefficient: 282 cv
• Close-Off Pressure: 175 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Non-Spring Return
• Loss of Power Position: Fail in place
• Power Input Voltage: 24 VAC/VDC
• Leads and Connections: Terminal Block
• Torque: 210 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2

• Valve Body: VBF-6301-0-L-12
• Valve Linkage: Included with assembly
• Actuator: BRY-NR-2224-541
