VS3343G14U020 | VB: 3/4 in, 3W Mix/Div, Zone, FLR, BR, 4 cv, 25 PSI; Act (AG14U020): Elec, 2Pos, SR, NC, 110-240 VAC, App, N1 | Schneider Electric

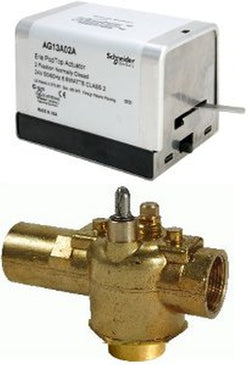

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS3343G14U020
Documents and manuals
Schneider Electric VS3343G14U020 Documents
Overview
Details for VS3343G14U020
VB: 3/4 in, 3W Mix/Div, Zone, FLR, BR, 4 cv, 25 PSI; Act (AG14U020): Elec, 2Pos, SR, NC, 110-240 VAC, App, N1
Valve Assembly:- Body Size: 3/4 in
- Configuration: 3-Way Mixing/Diverting
- Type: Zone
- Connection: Flare
- Material Trim: Brass
- Flow Coefficient: 4 cv
- Control Media: Glycol 25 to 50%, Steam and Water
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: VS3
- Valve Body: VS3343
- Valve Linkage: None, tool-less connection
- Actuator: AG14U020
- Actuator Range: Erie PopTop
Erie™ PopTop™ Series valve bodies and actuators provide easy installation for a variety of heating and cooling applications. The valve’s actuator can be installed after the valve body has been installed onto the fan coil, baseboard or air handler. VS Series valves are available for low pressure steam applications. PopTop Series are two position spring return valves. When powered, the actuator moves to the desired position, tensing the spring return system. When power is removed the actuator returns to the normal position. PopTop Series two position spring return valves can be purchased with an optional built-in auxiliary SPDT end switch for interfacing or signaling; for example, zone pump burner control. Actuators are designed fror cycling applications (not constantly powered).
Specifications
Item Number | VS3343G14U020 |
Brand | Schneider Electric |
Control Input | On/Off |
Control Valves Type | Zone Valve |
CV / GPM | 4 Cv |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 0.75" - 3 Way |
Voltage | 100-240V |
