VS-8213-556-5-16 | VB: 6 in, 2W, Globe, FLG, UO, BR, 370 cv, 125 PSI; Act (MS41-7153): Elec, Prop, 2-10 VDC/4-20 mAdc, SR, NO, 24 VAC/VDC, App | Schneider Electric

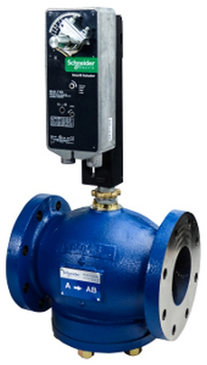

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-8213-556-5-16
Overview
Details for VS-8213-556-5-16
VB: 6 in, 2W, Globe, FLG, UO, BR, 370 cv, 125 PSI; Act (MS41-7153): Elec, Prop, 2-10 VDC/4-20 mAdc, SR, NO, 24 VAC/VDC, App
Valve Assembly:- Body Size: 6 in
- Configuration: 2-Way
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up A open
- Material Trim: Brass
- Flow Coefficient: 370 cv
- Close-Off Pressure: 125 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally open
- Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Torque: 133 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1, NEMA 2
- Valve Body: VB-8213-0-5-16
- Valve Range: Balanced Plug Technology
- Valve Linkage: AV-609-1
- Actuator: MS41-7153
- Actuator Range: SmartX Actuator
- Actuator Comment: NEMA 1. NEMA 2 (IEC IP54) with conduit connector in the down position. Comes with a blue 8 to 13 PSIG spring
Specifications
Item Number | VS-8213-556-5-16 |
Brand | Schneider Electric |
Control Input | Modulating |
Control Valves Type | Globe Valve |
CV / GPM | 370 Cv |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 6" - 2 Way |
Voltage | 24V |
