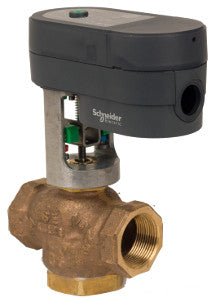

VS-7313-112-4-09 | VB: 1-1/4 in, 3W Mix, Globe, STR, NPT, BR, 20 cv, 42 PSI; Act (MGF350V-24MP): Elec, Mod, NSR, 24 VAC, 67 lbf, FB, Linear, N2 | Schneider Electric

VB: 1-1/4 in, 3W Mix, Globe, STR, NPT, BR, 20 cv, 42 PSI; Act (MGF350V-24MP): Elec, Mod, NSR, 24 VAC, 67 lbf, FB, Linear, N2

• Body Size: 1-1/4 in
• Configuration: 3-Way Mixing
• Type: Globe
• Body Pattern: Straightway
• Connection: NPT
• Stem Flow Action: Stem up flow B to AB
• Material Trim: Brass
• Flow Coefficient: 20 cv
• Close-Off Pressure: 42 PSI
• Actuator Type: Electric
• Control Signal: Modulating
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc
• Loss of Power Position: Non-Spring Return
Loss of Power Position: Fail in place
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Force: 67 lbf
• Mechanical Movement: Linear
• Additional Features: Feedback and LED Status Indicator
• Protection Rating: NEMA 2

• Valve Body: VB-7313-0-4-09
• Actuator: MGF350V-24MP
• Actuator Range: SmartX Actuator
• Actuator Comment: Field selectable. The 2 to 10 VDC output signal range also includes an alarm signal
• Linkage: Integral linkage
