VS-7223-556-4-09 | VB: 1-1/4 in, 2W, Globe, STR, NPT, UC, BR, 20 cv, 200 PSI; Act (MS41-7153): Elec, Prop, SR, NC, 24 VAC/VDC, App, 133 in-lb, Rotary, N1/N2 | Schneider Electric

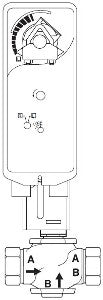

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-7223-556-4-09
Overview
Details for VS-7223-556-4-09
VB: 1-1/4 in, 2W, Globe, STR, NPT, UC, BR, 20 cv, 200 PSI; Act (MS41-7153): Elec, Prop, SR, NC, 24 VAC/VDC, App, 133 in-lb, Rotary, N1/N2
Valve Assembly:- Body Size: 1-1/4 in
- Configuration: 2-Way
- Type: Globe
- Body Pattern: Straightway
- Connection: NPT
- Stem Flow Action: Stem up A closed
- Material Trim: Brass
- Flow Coefficient: 20 cv
- Close-Off Pressure: 200 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Torque: 133 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1, NEMA 2
- Valve Body: VB-7223-0-4-09
- Valve Range: Venta
- Valve Linkage: AV-602
- Actuator: MS41-7153
- Actuator Range: SmartX Actuator
- Actuator Comment: NEMA 1. NEMA 2 (IEC IP54) with conduit connector in the down position.
Specifications
Item Number | VS-7223-556-4-09 |
Brand | Schneider Electric |
Control Input | Modulating |
Control Valves Type | Globe Valve |
CV / GPM | 20 Cv |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 1.25" - 2 Way |
Voltage | 24V |
