VS-2313-831-9-28 | VB: 1 in, 3W, Ball, NPT, BR, 10 cv, 50 PSI; Act (MS4D-8033-100): Elec, Prop, SR, NC, 24 VAC/20-30 VDC, Plen, 30 in-lb, Rotary, N2, SmartX | Schneider Electric

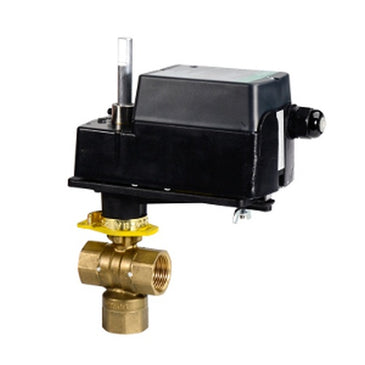

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VS-2313-831-9-28

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric VS-2313-831-9-28 Documents

Datasheet More Info

Overview

Details for VS-2313-831-9-28

VB: 1 in, 3W, Ball, NPT, BR, 10 cv, 50 PSI; Act (MS4D-8033-100): Elec, Prop, SR, NC, 24 VAC/20-30 VDC, Plen, 30 in-lb, Rotary, N2, SmartX

Valve Assembly:

Body Size: 1 in/li>
Configuration: 3-Way Mixing
Type: Ball
Connection: NPT
Material Trim: Brass
Flow Coefficient: 10 cv
Close-Off Pressure: 50 PSI
Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 2 to 10 VDC
Loss of Power Type: Spring Return
Loss of Power Position: Normally closed
Power Input Voltage: 24 VAC or 20 to 30 VDC
Leads and Connections: 3 ft Plenum
Torque: 30 in-lb
Mechanical Movement: Rotary
Protection Rating: NEMA 2

Assembly Components:

Valve Body: VB-2313-500-9-28
Valve Linkage: Linkage included with valve body
Actuator: MS4D-8033-100
Actuator Range: SmartX

Product Alert: Not for use with steam. The direct coupled 24 Vac non-spring return rotary electric SmartX Actuators are designed for modulating control of dampers.

Specifications

Item Number	VS-2313-831-9-28
Brand	Schneider Electric
Control Input	Modulating
Control Valves Type	Ball Valve
CV / GPM	10 Cv
End Switch	No
Housing	NEMA 1
Spring Return	Spring Return
Valve Size	1" - 3 Way
Voltage	24V
